From: A Genome-Wide Identification of the WRKY Family Genes and a Survey of Potential WRKY Target Genes in Dendrobium officinale

Figure 7

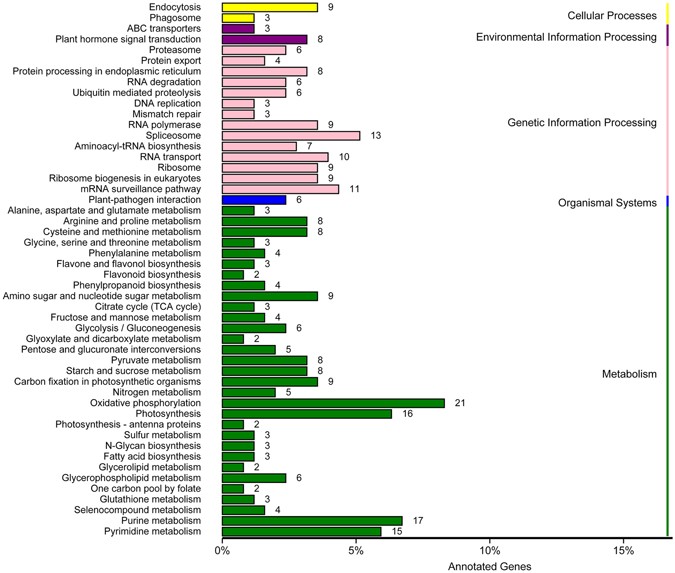

Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis of WRKY target genes in D. officinale. KEGG pathway consists of graphical diagrams contained four main categories: ‘metabolism’ (green), ‘genetic information processing’ (pink), ‘environmental information processing’ (purple), ‘cellular processes’ (yellow) and ‘organismal systems’ (blue).
