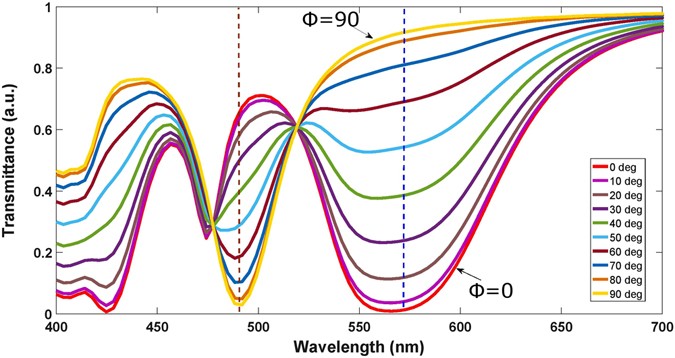

Figure 3
From: Polarization tunable all-dielectric color filters based on cross-shaped Si nanoantennas
Shift in transmittance spectra when Φ is varied from 0° to 90°. Dashed lines indicate two resonance cases with strong transmission contrast between two orthogonal polarization states (Φ = 0° and Φ = 90°).
