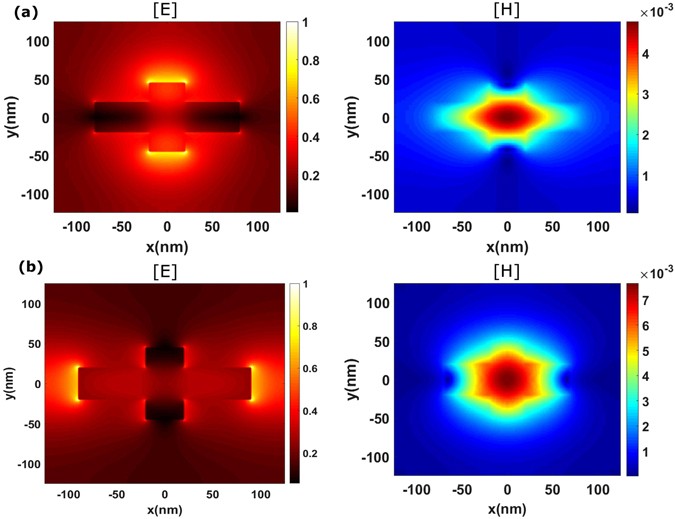

Figure 4
From: Polarization tunable all-dielectric color filters based on cross-shaped Si nanoantennas
Electric and magnetic field distribution in (x, y)-plane, at the mid-height of nanoantenna (z = h/2): (a) λ = 480 nm, y-polarized incident wave and (b) λ = 570 nm, x-polarized incident wave.
