Figure 2
From: Intrusion of the Kuroshio into the South and East China Seas

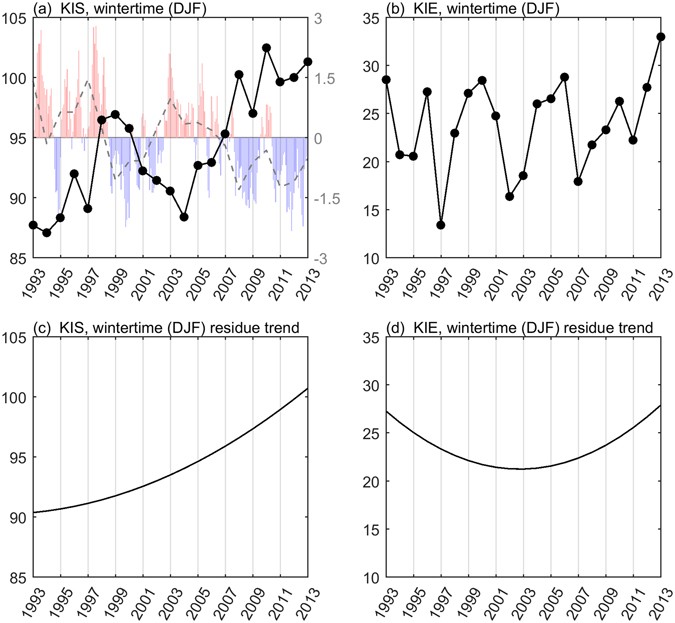

Kuroshio intrusions into China Seas during wintertime (Dec-Jan-Feb, 1993–2013). (a) Time series of winter-only KIS index (in units of cm). Positive (negative) PDO indices are also shown in red (blue) colored bars. Dashed line is the yearly mean PDO index. (b) Time series of winter-only KIE index (in units of cm s−1). (c,d) Same as the black lines with dots in Fig. 2a and b, except for the residue trend of winter-only KIS and KIE indices, respectively. All figures are generated with MATLAB (R2017a; https://www.mathworks.com/).
