Figure 3 | Scientific Reports

Figure 3

From: Template-Assisted Preparation of Micrometric Suspended Membrane Lattices of Photoluminescent and Non-Photoluminescent Polymers by Capillarity-Driven Solvent Evaporation: Application to Microtagging

Figure 3

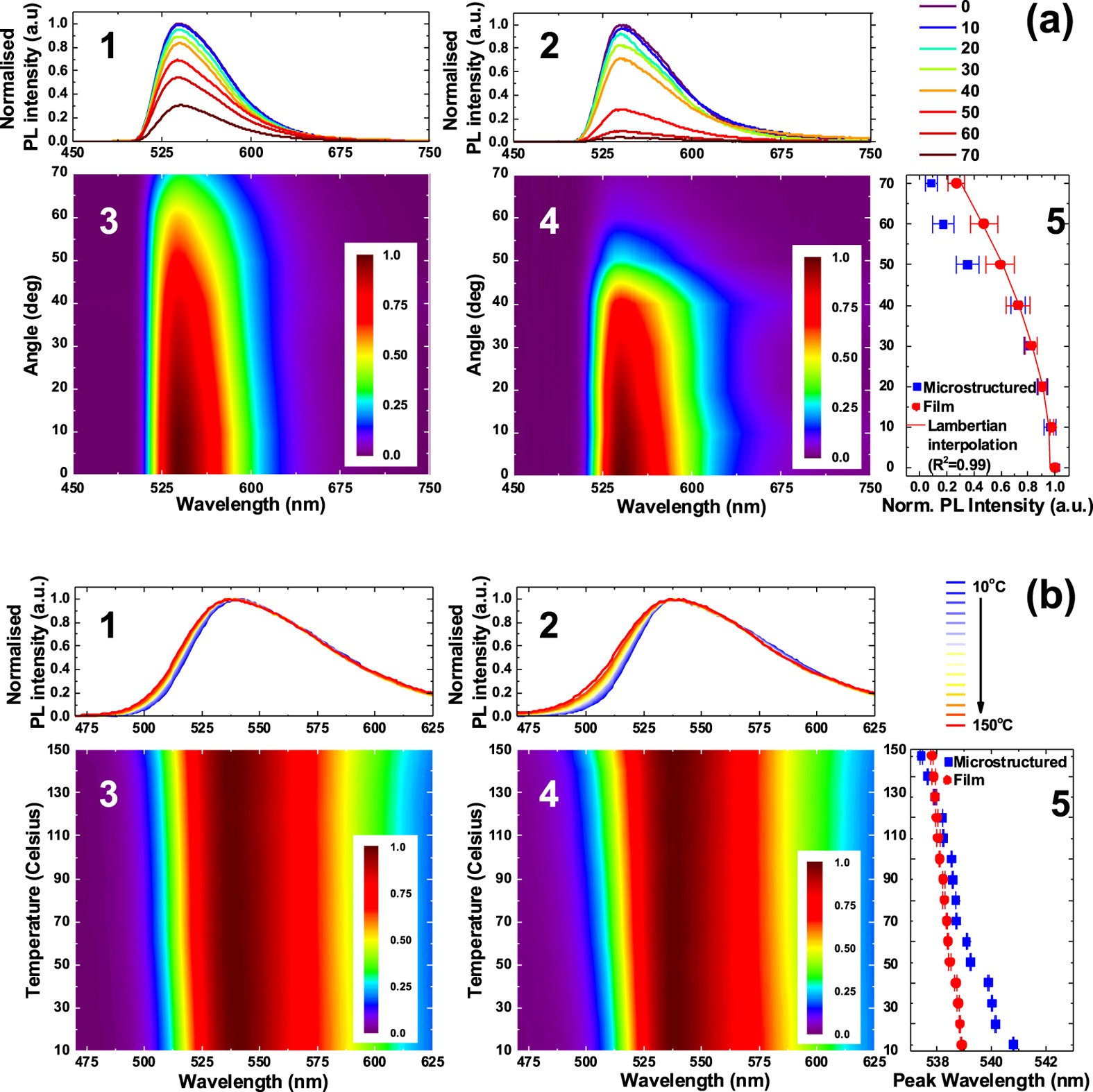

Optical Characterization of Micrometric Suspended F8BT Membrane Lattices. (a) PL emission as a function of the collection angle: normalized PL spectra as a function of the collection angle (a-1, a-2) and the relative contour plots (a-3, a-4) referring to F8BT suspended membrane lattices featuring pitch of 3 μm obtained drop-casting 10 μL of 1 wt% polymer solution (a-2, a-4) and F8BT films (a-1, a-3), together with a graph comparing spectrally integrated PL versus collection angle for both sets of samples (a-5). (b) PL emission as a function of the temperature: normalized PL spectra as a function of the temperature (b-1, b-2) and the relative contour plots (b-3, b-4) referring to F8BT suspended membrane lattices featuring pitch of 3 μm obtained drop-casting 10 μL of 1 wt% polymer solution (b-2, b-4) and F8BT films (b-1, b-3), together with a graph comparing the emission peak wavelength versus the operation temperature for both sets of samples (b-5).
