Figure 2 | Scientific Reports

Figure 2

From: Epigallocatechin-3-gallate inhibits H2O2-induced apoptosis in Mouse Vascular Smooth Muscle Cells via 67kD Laminin Receptor

Figure 2The alternative text for this image may have been generated using AI.

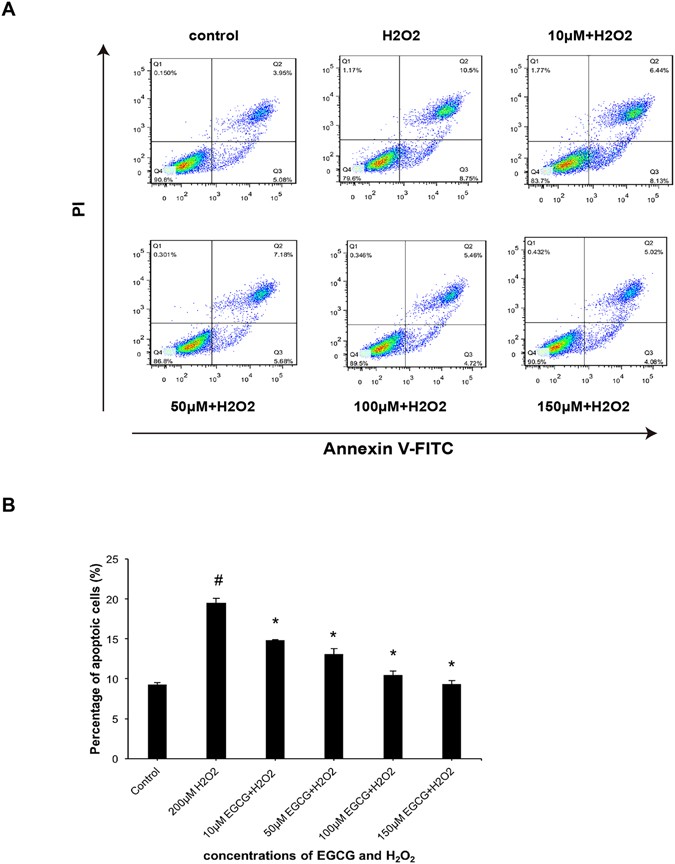

EGCG reduced H2O2-induced apoptosis in VSMCs. (A) VSMCs were pretreated with 10, 50, 100, or150μM EGCG for 2 h, followed by treatment with 200 μM H2O2 for 30 min. Annexin V-FITC/PI staining and flow cytometry was used to assess the rate of apoptotic cells, which was defined as the sum of early and late apoptosis events. Flowjo software was used to analyze flow cytometry results. (B) Statistical data were represented based on experiments performed in triplicate. Results were expressed as Mean ± S.D (n = 5). *P < 0.05 vs. H2O2 treatment group, #p < 0.05 vs. control group.
