From: Morphological differences of the reproductive system could be used to predict the optimum Grapholita molesta (Busck) control period

Figure 8

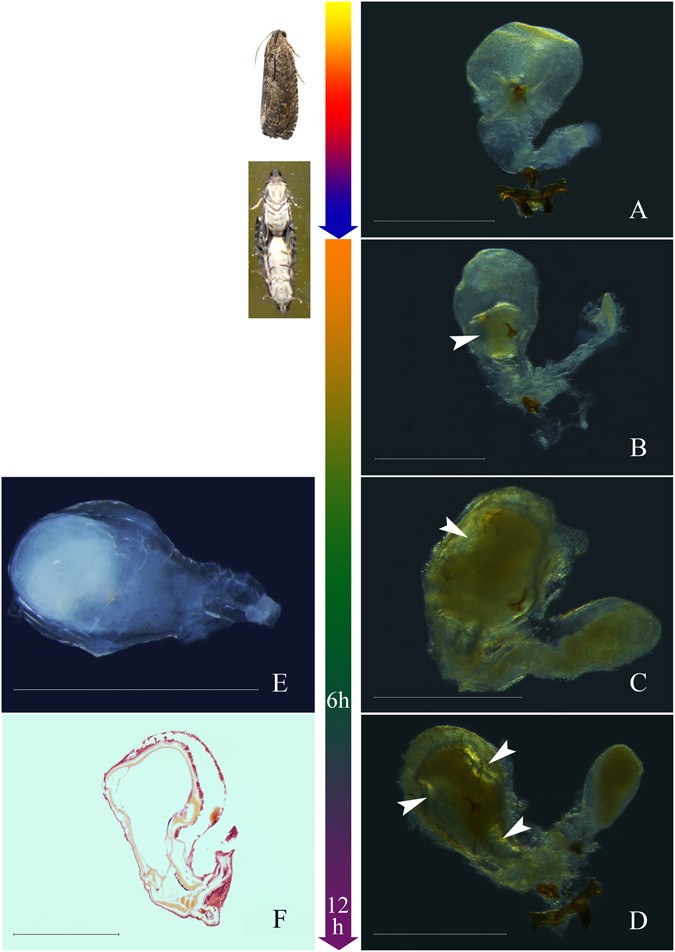

Morphology of corpus bursa before and after mating (h: hours after mating). Scales = 1.0 mm. (A) Virgin females; (B) Immediately after effective mating (arrow show spermatophore); (C) 6 hours after mating (arrow show bubble); (D) 12 hours after mating (arrows show bubbles); (E) Spermatophore; (F) Semithin section of 12 hours after mating.
