Figure 5
From: In-situ, time resolved monitoring of uranium in BFS:OPC grout. Part 1: Corrosion in water vapour

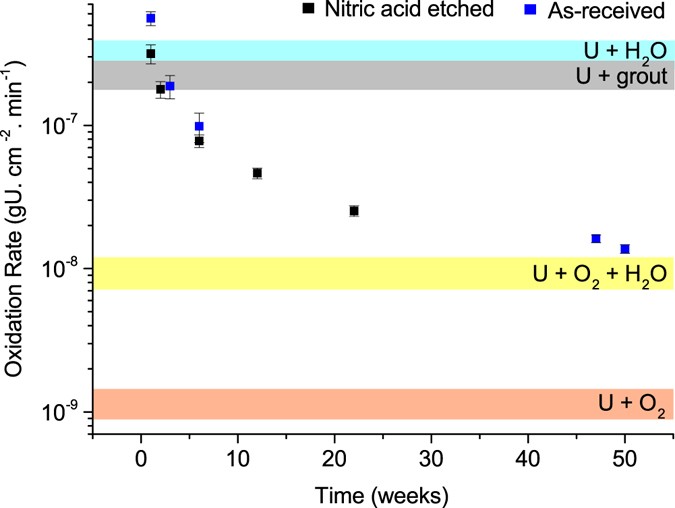

A plot demonstrating the variability in oxide growth rates of grout encapsulated uranium exposed to water vapour over time. Each band of colour represents the oxidation rate at 25 °C calculated from the empirically derived equations displayed at the beginning of this section by12, 13, 30, 36. These rates are compared to the rates calculated from the oxide thicknesses determined here. The error bars originate from the errors exhibited in Table 2, which have been processed through the equations.
