From: Metabolomic compounds identified in Piriformospora indica-colonized Chinese cabbage roots delineate symbiotic functions of the interaction

Figure 3

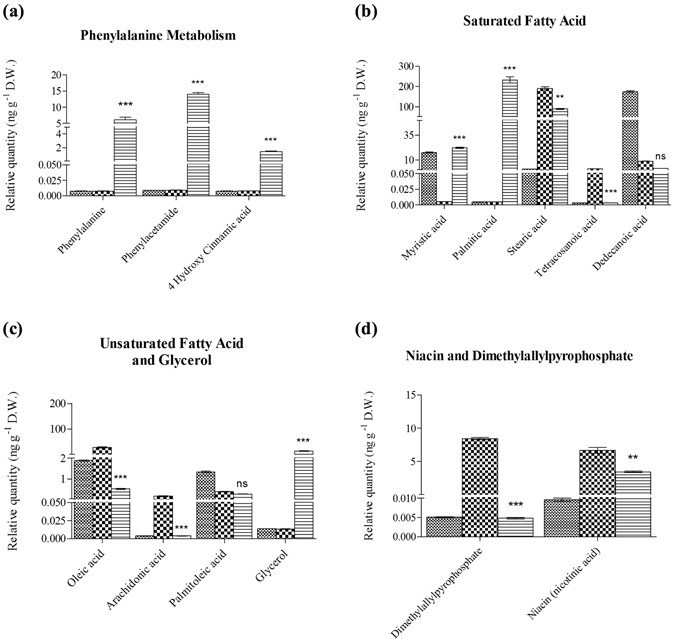

Quantification of metabolites that were reduced and altered by P. indica after colonization with B. campestris root. Relative quantification of (a) metabolites involved in phenylalanine metabolism; (b) saturated fatty acids; (c) unsaturated fatty acids and glycerol; and (d) nicotinic acid and dimethylalyl-diphosphate. Standard Error (SE) was calculated by three biological repeats taken by the average of each relative quantification from peak area acquired from GC-MS data analysis, p-value < 0.01 for significant among variables Hyphae, Uncolonized Root, Colonized Root for each compound. Legend: Hyphae; Uncolonized Root and Colonized Root.
