Figure 4
From: Transcriptomic analysis of nickel exposure in Sphingobium sp. ba1 cells using RNA-seq

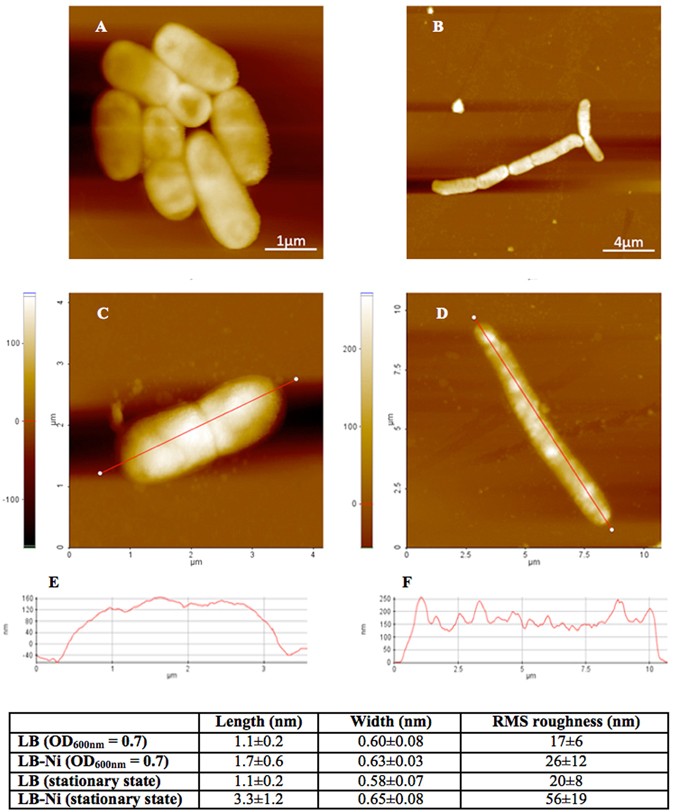

AFM analysis. Comparison of Sphingobium sp. ba1 cell morphology cultured in LB (A,B) and LB-Ni (D,E) media and harvested at OD600nm = 0.7 (A,D) and at stationary conditions (B,E) as obtained by Atomic Force Microscopy (AFM). Height profiles measurements along major cell axes are reported only for cells at stationary state (C,F). Measurement values are reported in the inset table.
