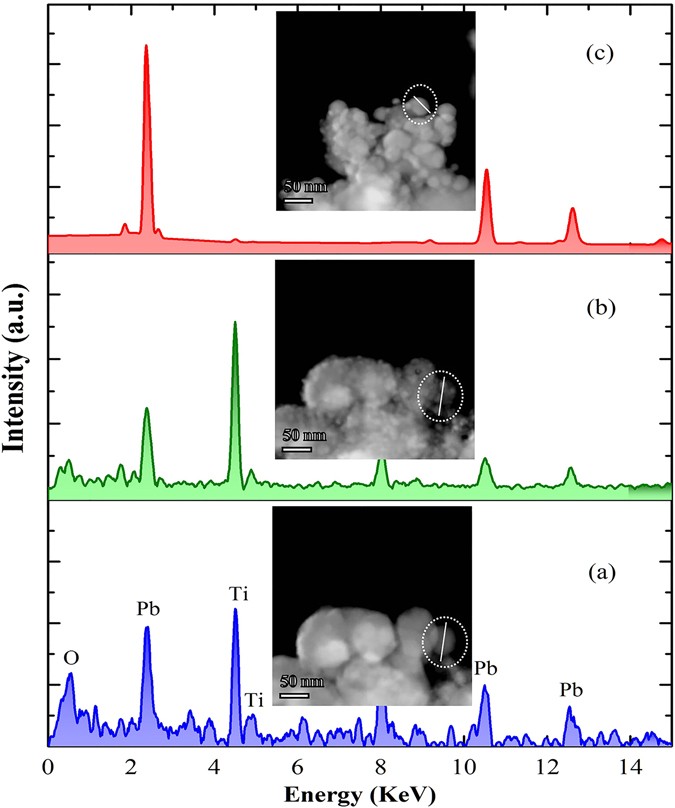

Figure 5

(a,b and c) are EDS spectrum acquired from the PbTiO₃ sample before, after 80 sec and prolonged point of irradiation, respectively. The insets are corresponding High angle annular dark field (HAADF) images of the sample, which are analyzed by EDS method. The circle denoted a line profile scanned region.
