Figure 5
From: Metagenomic analysis reveals a green sulfur bacterium as a potential coral symbiont

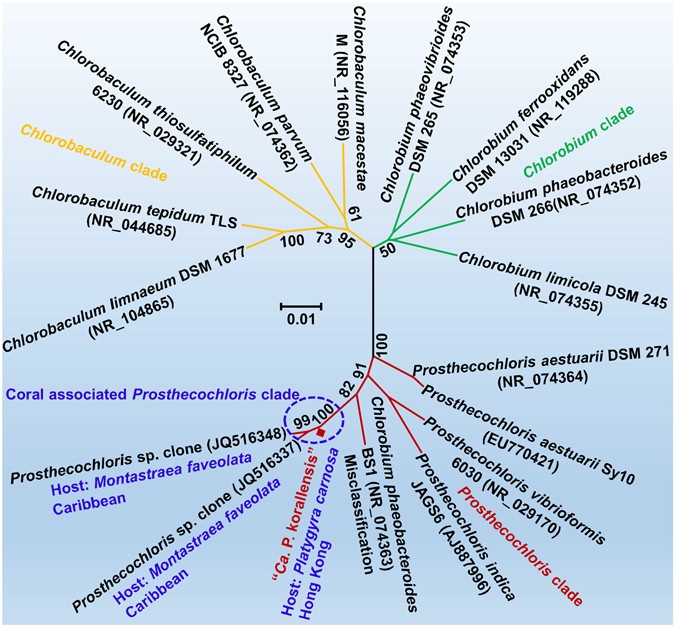

Phylogenetic analysis for “Ca. P. korallensis” and its relatives using full-length 16S rRNA gene. The neighbour-joining tree was constructed using MEGA 6.06 with 1000 bootstrap replication test. The bootstrap values higher than 50% are shown. The scale bar 0.01 indicates 1% nucleotide substitution.
