Figure 2

From: Experimental Study of Rheological Properties and Oil Displacement Efficiency in Oilfields for a Synthetic Hydrophobically Modified Polymer

Figure 2

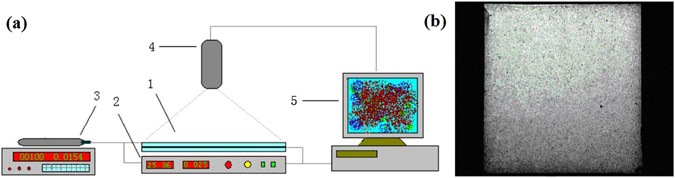

Device and physical model for visual evaluation of oil displacement. (a) Device for visually evaluating oil displacement. 1 Transparent visualization model. 2 Thermostatic physical model tank bottom. 3 Micro pump filled with fluid. 4 Camera for continuous, real-time recording of various substances. 5 Computer analyzed image data. (b) Physical model of visualization.
