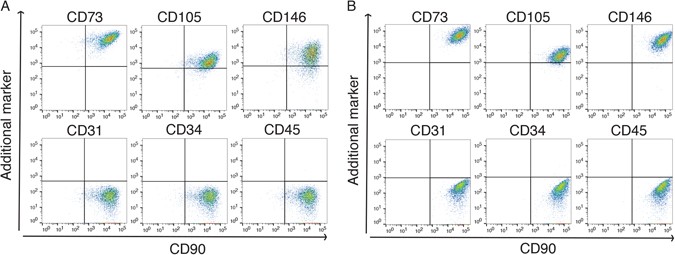

Figure 1
From: Quantitative proteomic characterization of lung-MSC and bone marrow-MSC using DIA-mass spectrometry
Lung-derived and bone marrow-derived MSC show typical MSC surface marker profiles. Flow cytometry analysis of cultured (passage 3–4) MSC isolated from (A) lung tissue (n = 3) and (B) bone marrow aspirates (n = 3). The x-axis indicates CD90 expression and the y-axis represents the expression of the additional marker indicated on top of the plots. Cells were positive for the surface markers CD73, CD90, CD105, and CD146, but negative for the surface markers CD31, CD34, and CD45. Data are presented as dot plots. Gates were set according to corresponding isotype control.
