From: Isolation, characterization and toxicological potential of Alternaria-mycotoxins (TeA, AOH and AME) in different Alternaria species from various regions of India

Figure 5

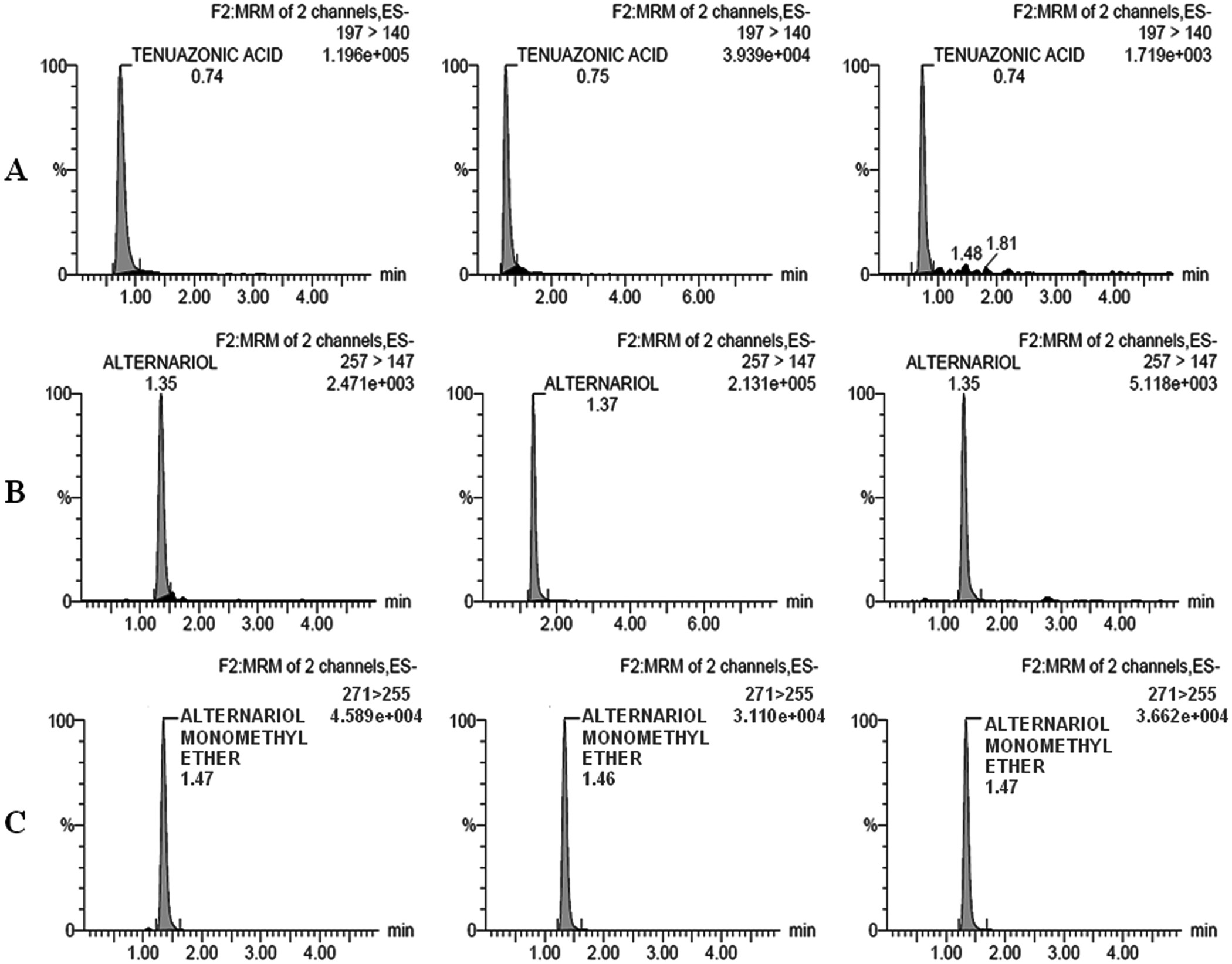

LC-MS/MS analysis (using the Accucore RP-MS 100 × 3, ACQ-TQD, QBP 1152) of TeA, AOH and AME in different isolates of Alternaria species which showed higher amount of these toxins. (A) Chromatograms of TeA, Collision energies for TeA (20 eV) and multiple reaction monitoring (MRM) transitions (ES+198/125 and ES−197/140). (B) Chromatograms of AOH, Collision energies for AOH (30 eV) and multiple reaction monitoring (MRM) transitions (ES+259/185 and ES−257/147). (C) Chromatograms of AME, Collision energies for AME (32 eV) and multiple reaction monitoring (MRM) transitions (ES+271/255 and ES−271/228).
