Figure 3
From: First-principles study of crystallographic slip modes in ω-Zr

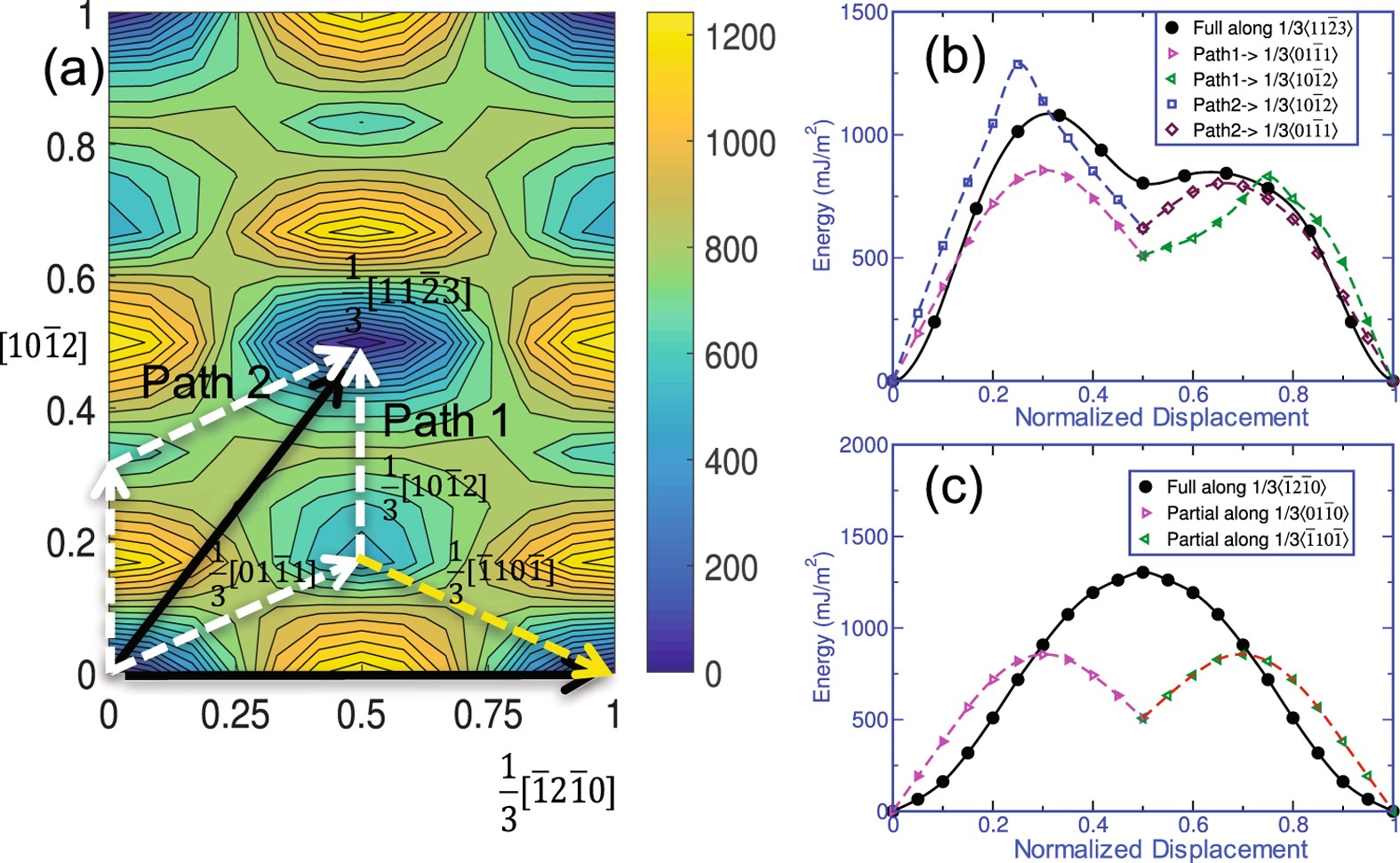

(a) Two-dimensional γ-surface for the pyramidal-I plane in ω-Zr obtained from DFT calculations. (b) The possible partial dislocations after dissociation of a full 〈c + a〉 dislocation on the pyramidal-I plane, and (c) the partial dislocations after dissociation of a full 〈a〉 dislocation on the pyramidal-I plane. The x-axis displacement shift corresponds to the actual displacement along the glide direction normalized by the full Burgers vectors for each slip system.
