Figure 3

From: Precise stacking of decellularized extracellular matrix based 3D cell-laden constructs by a 3D cell printing system equipped with heating modules

Figure 3

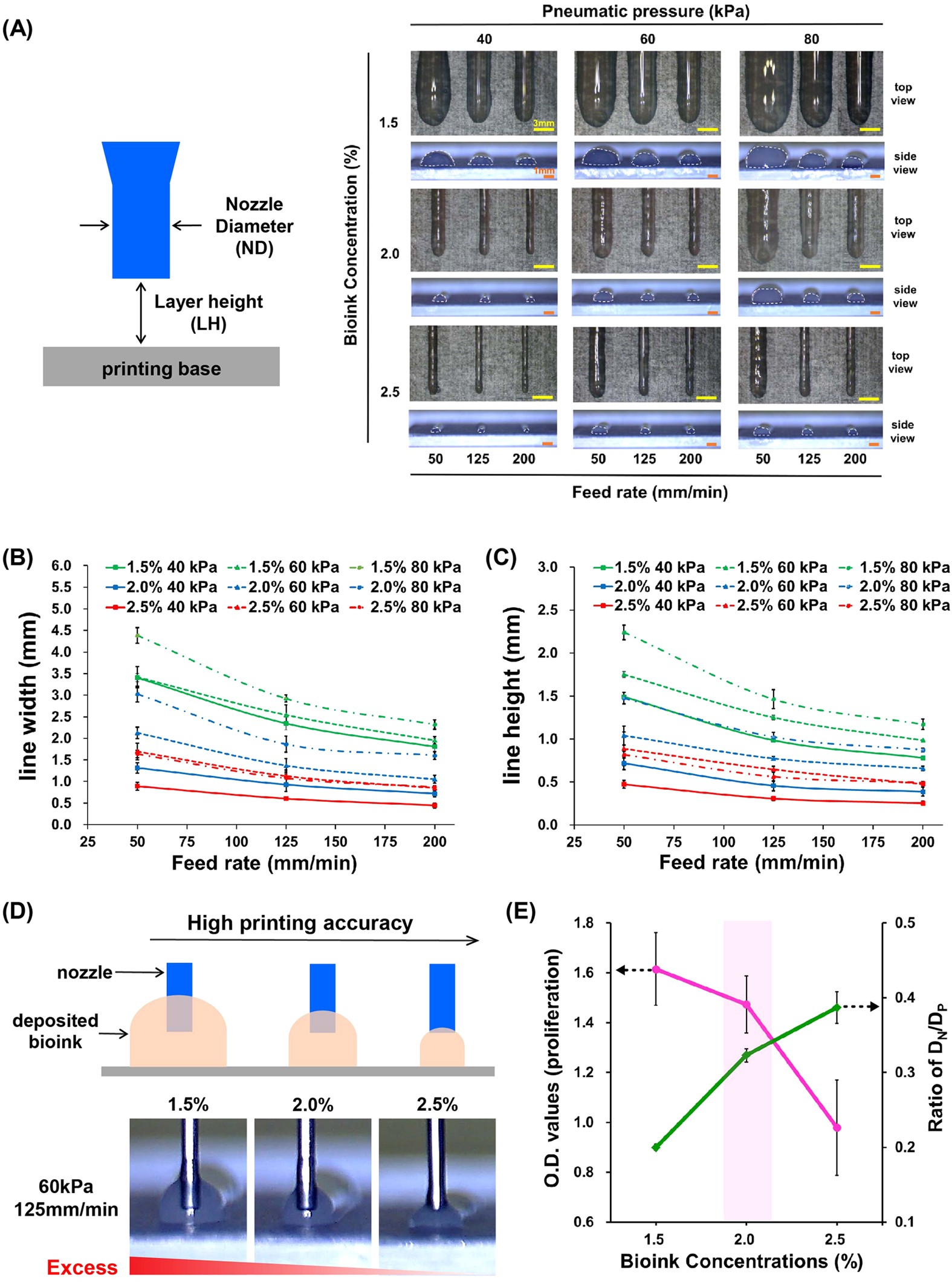

2D patterning analysis. (A) Schematic diagram of printing settings and 2D patterning results depending on bioink concentrations and printing parameters. Quantitative analysis of the (B) width and (C) height of the printed straight lines. (D) Definition of printing accuracy and its representative optical images. (E) The relationship between cell proliferation and printing precision (ratio of DN/DP).
