Figure 6

From: Precise stacking of decellularized extracellular matrix based 3D cell-laden constructs by a 3D cell printing system equipped with heating modules

Figure 6

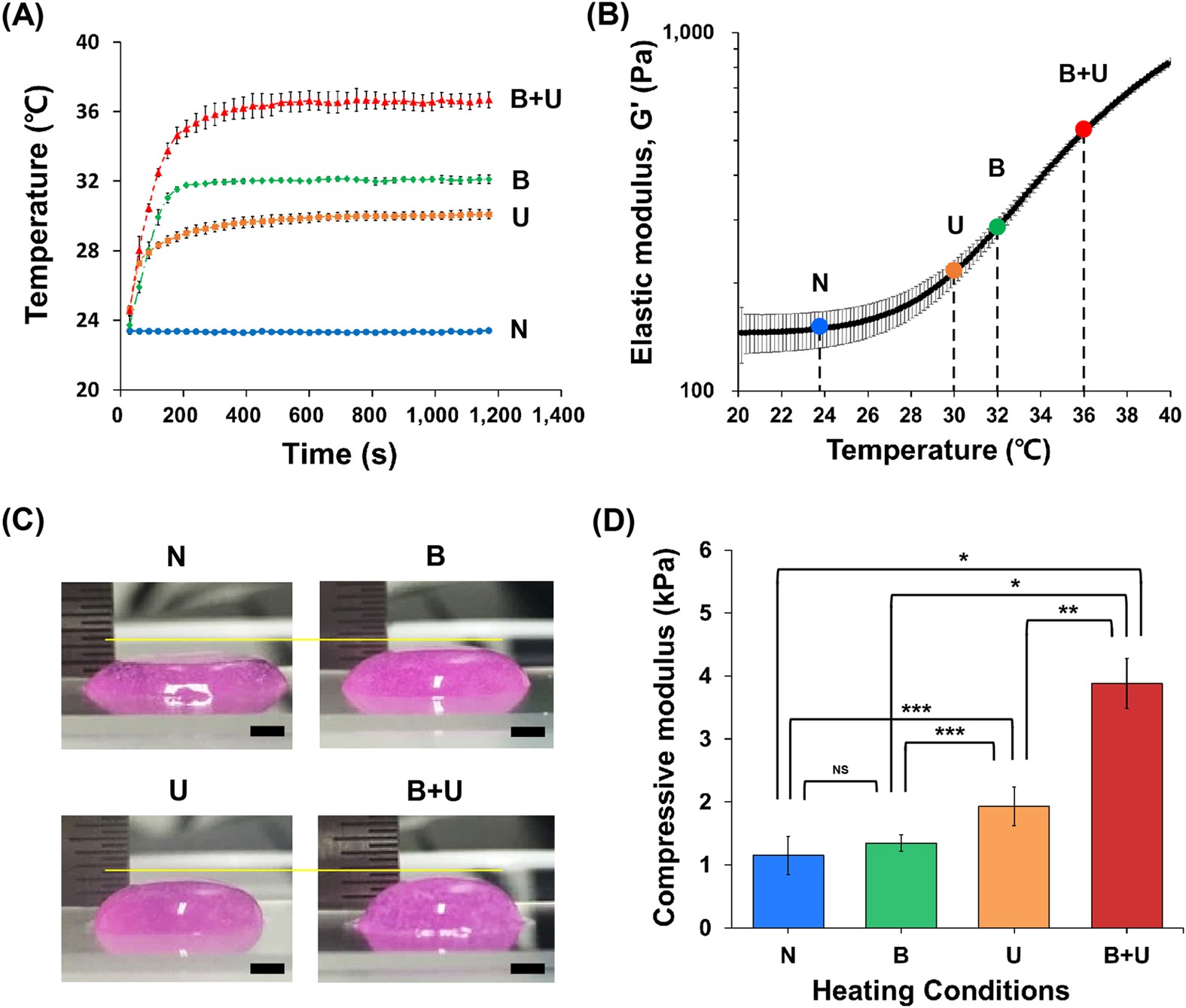

Efficacy of heating systems. (A) Results of saturation temperature measurement for each condition. (B) Temperature sweep oscillatory tests with a temperature ramp of 5°C/min from 20 °C to 40 °C. (C) 3D stacking results of bioinks with different heating condition. (D) Compressive moduli of the printed structures under each heating condition. (*p < 0.001, **p < 0.005, ***p < 0.05).
