Figure 8

From: Precise stacking of decellularized extracellular matrix based 3D cell-laden constructs by a 3D cell printing system equipped with heating modules

Figure 8

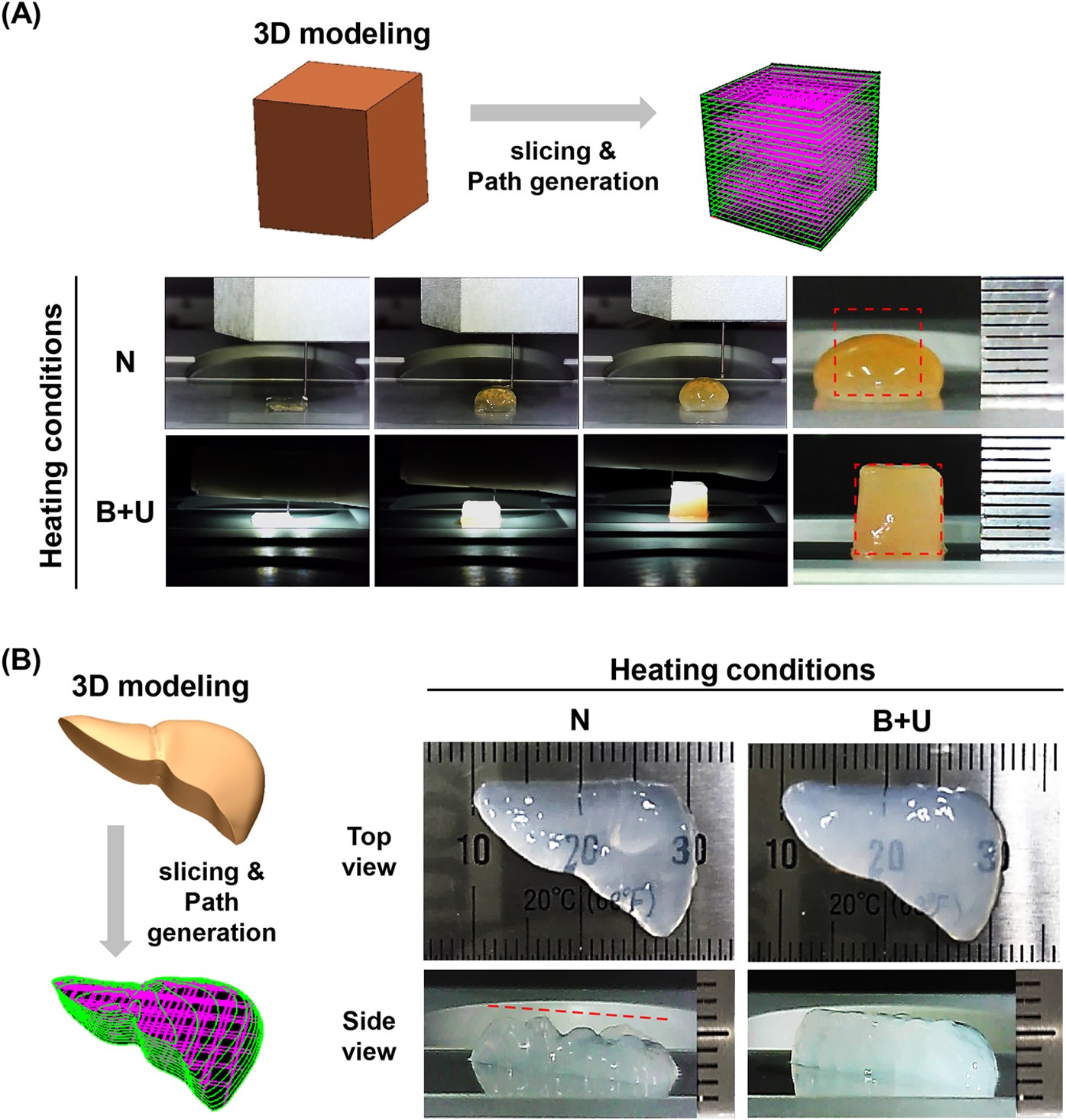

3D stacking results. (A) Observation of stacking efficacy of the heating system using rectangular-shaped constructs. Red-dotted square line indicates the predesignated shape. (B) 3D modelling of a liver-shaped construct and generation of printing code and 3D printing results of liver-shaped constructs under non-heating (N) and heating (B + U) conditions.
