Figure 2
From: Control of unsteady laser-produced plasma-flow with a multiple-coil magnetic nozzle

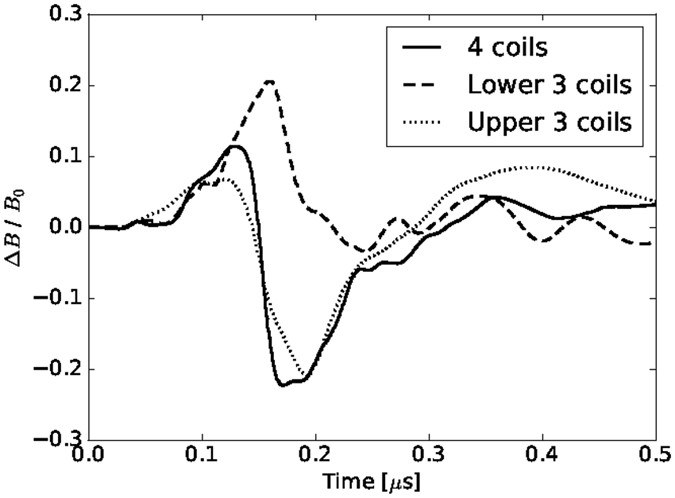

The time evolution of the magnetic field measured with the B-dot probe using all four coils, the lower three coils (top coil is turned off), and the upper three coils (bottom coil is turned off).
