Figure 5
From: Control of unsteady laser-produced plasma-flow with a multiple-coil magnetic nozzle

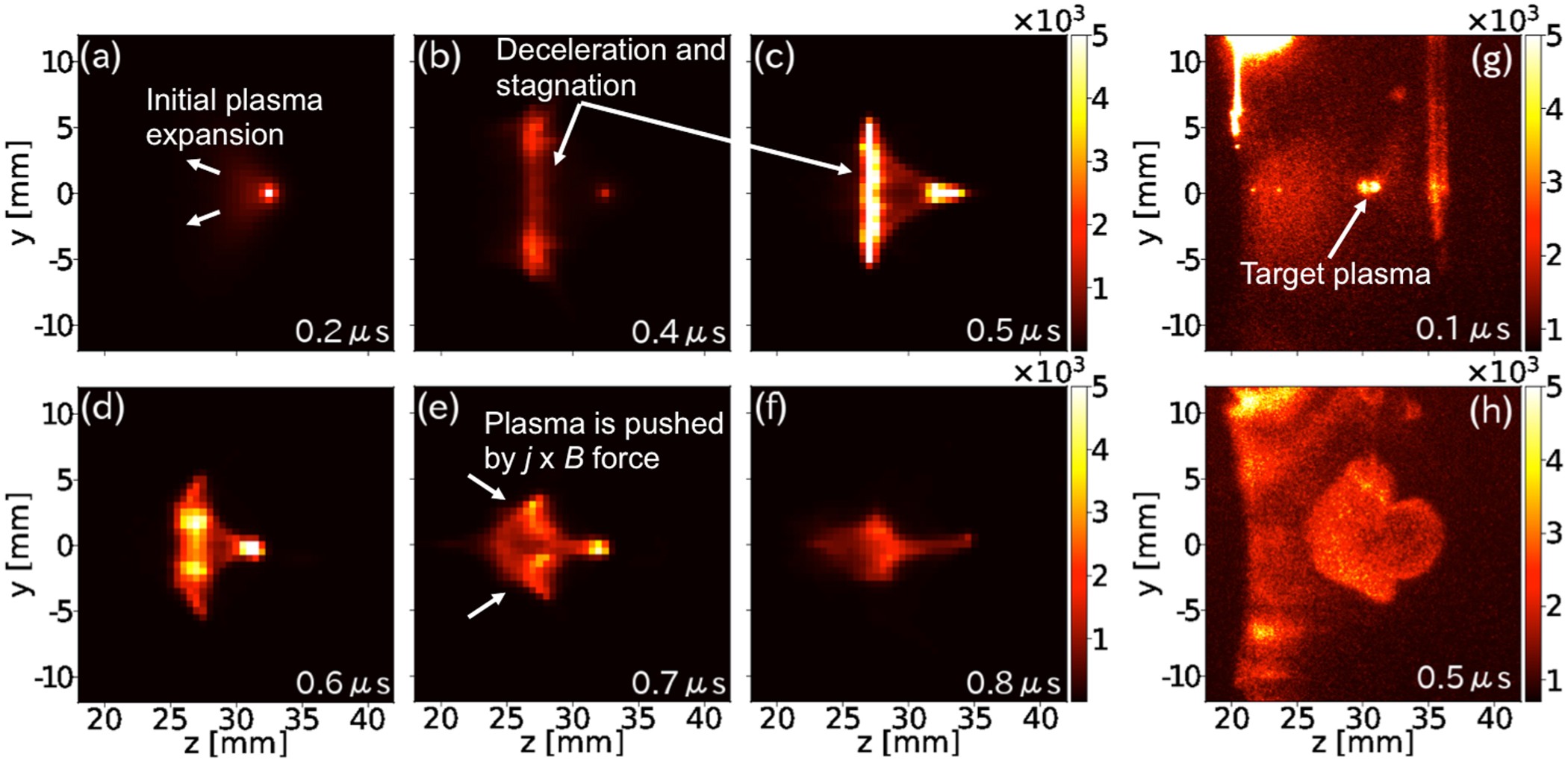

Artificial camera images generated from numerical simulation with four-coil operation at (a) t = 0.2 μs, (b) 0.4 μs, (c) 0.5 μs, (d) 0.6 μs, (e) 0.7 μs, and (f) 0.8 μs outside of the coil. The camera images at (g) t = 0.1 μs and (g) 0.5 μs obtained from the experiment are shown as well.
