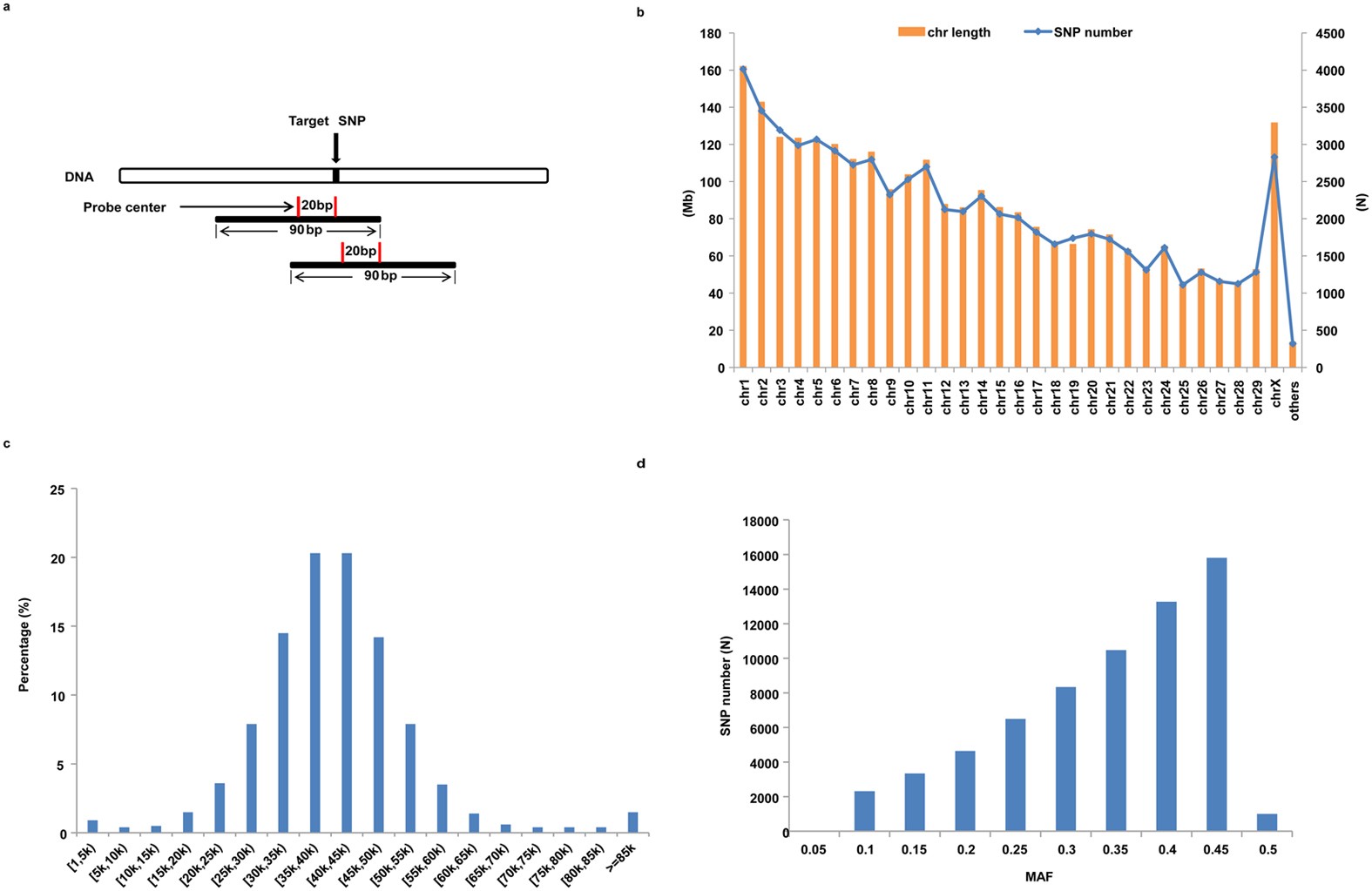

Figure 3
From: Genome-wide Target Enrichment-aided Chip Design: a 66 K SNP Chip for Cashmere Goat
The characterization of final SNPs selected for designing the 66 K SNP chip. (a) The schematic graph of probe design. The distance between the center of probe and the target SNP is shown. (b) The number of SNPs corresponds to the lengths of scaffolds/chromosomes in the goat genome. (c) The frequency distribution of the spaces between neighboring SNPs. (d) The frequency distribution of the MAFs of the selected SNPs.
