Figure 5 | Scientific Reports

Figure 5

From: Omalizumab efficacy in cases of chronic spontaneous urticaria is not explained by the inhibition of sera activity in effector cells

Figure 5

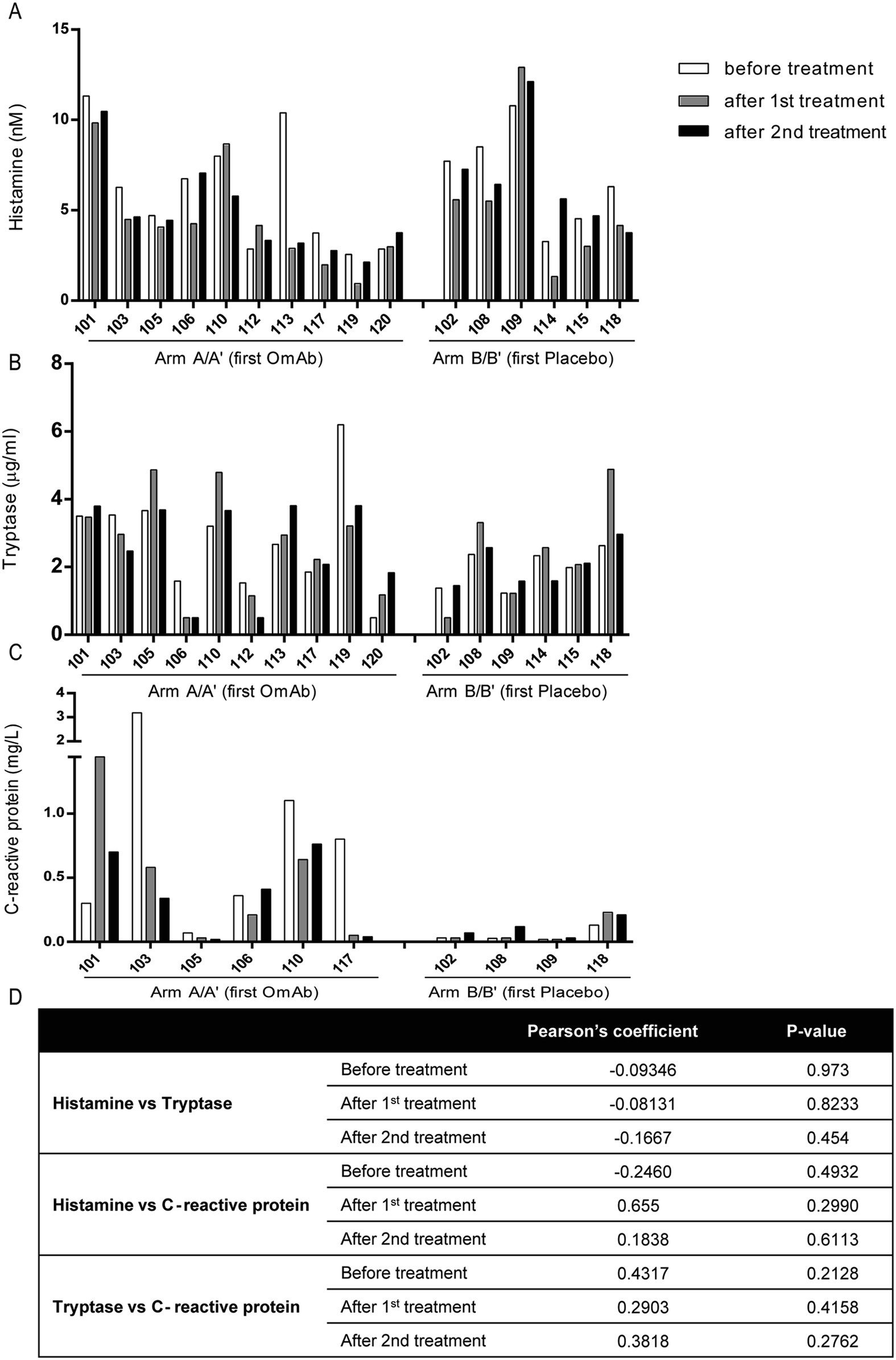

Histamine, tryptase or C-reactive protein levels in sera from CSU patients did not change after OmAb treatment. The charts represent the concentration of histamine (A), tryptase (B) and C-reactive protein (C) in sera from CSU patients at different time points of the OmAb/placebo treatment. (D) Table showing Pearson’s coefficients for the different substances tested.
