Figure 1
From: On the surface effects of citrates on nano-apatites: evidence of a decreased hydrophilicity

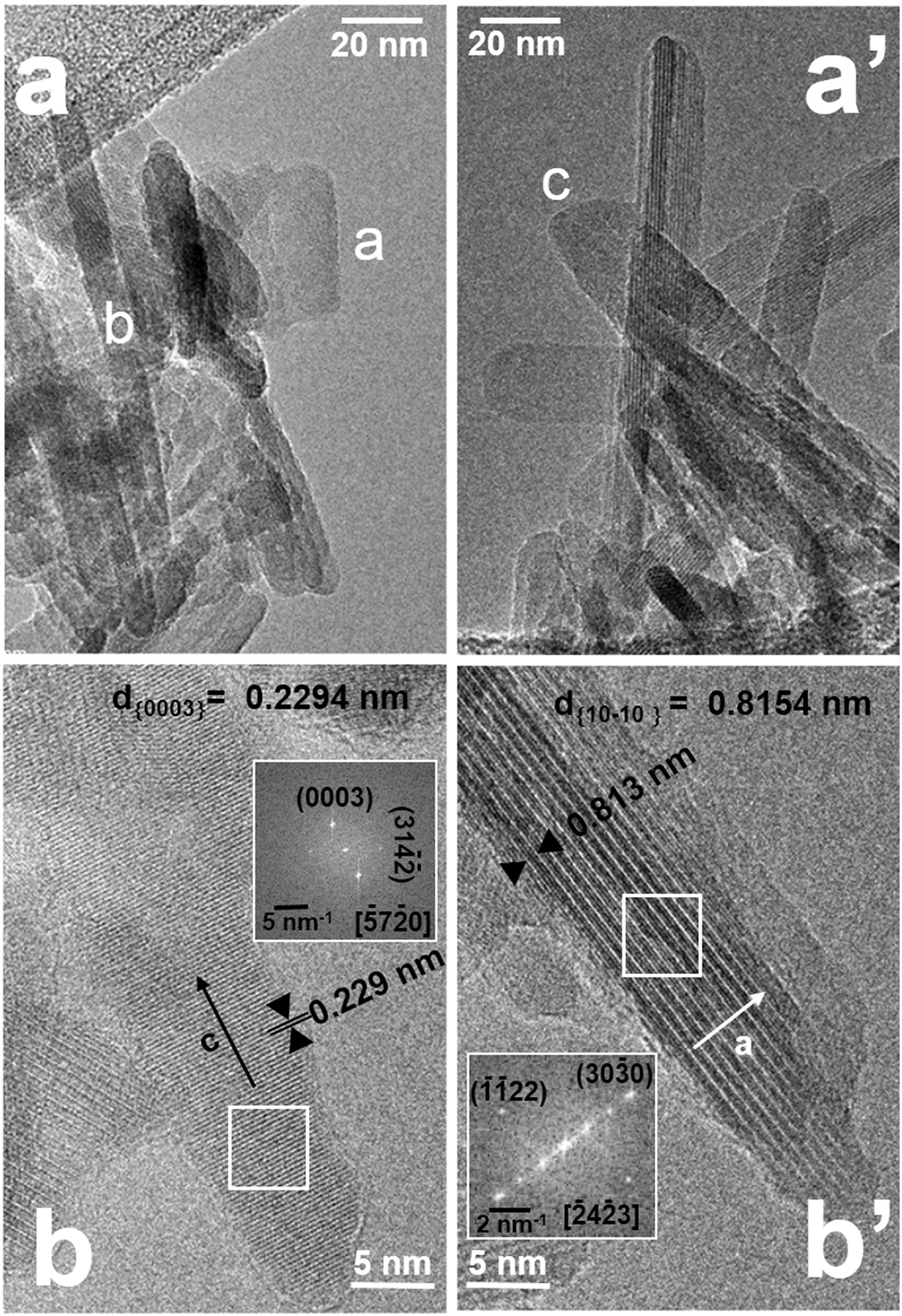

Representative TEM images of Cit-HA-24h. Original magnification: (a,a’) 150 k×; (b,b’) 400 k×. Insets in b,b’: FT of the image portions enframed within the white squares.
