Figure 4
From: Genetic basis of mycotoxin susceptibility differences between budding yeast isolates

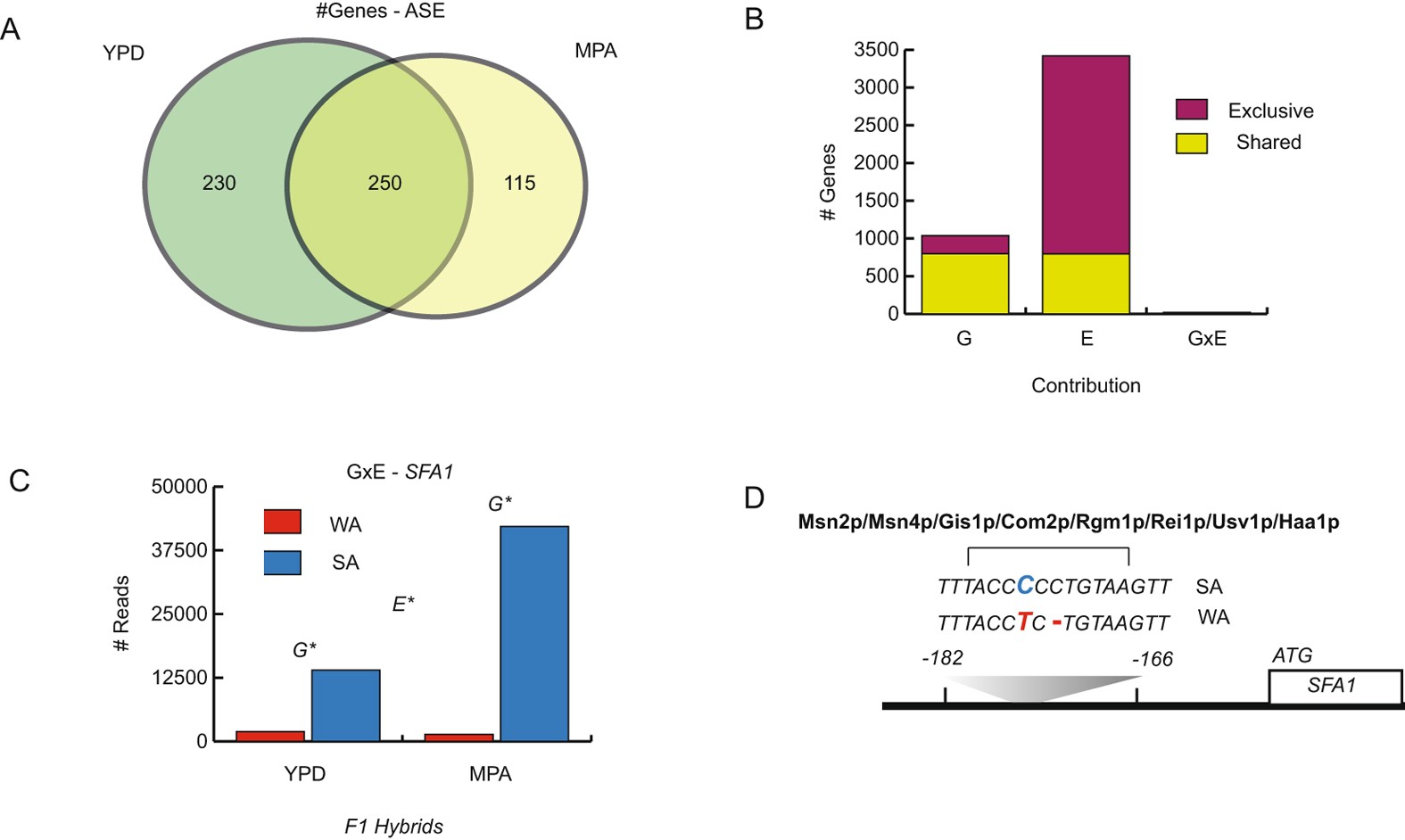

ASE and GxE interactions in F1 Hybrids. (A) Number of Genes exhibiting ASE in individuals subjected to YPD (green) and MPA (yellow) treatments. (B) Number of genes exhibiting significant Genotype (G), Environment (E) and GxE (Genotype × Environment) components derived from F1 hybrid expression data. The number of genes with shared (genes with more than one significant component, in yellow) and exclusive (exhibiting a sole significant component, in purple) components are depicted. (C) Number of WA and SA reads of F1 hybrids grown in YPD and MPA; SFA1 is given as an example of a gene affected by both genotype and environment (GxE), (G*) and (E*) denote significant genotype and/or environment effects FDR < 0.05. (D) The sequence divergence between the SA and WA strains is between −182 and −166 bp from the SFA1 ORF. Also, the predicted binding differences due to the two polymorphisms are depicted.
