Figure 2

From: Comparative metabonomics of Wenxin Keli and Verapamil reveals differential roles of gluconeogenesis and fatty acid β-oxidation in myocardial injury protection

Figure 2

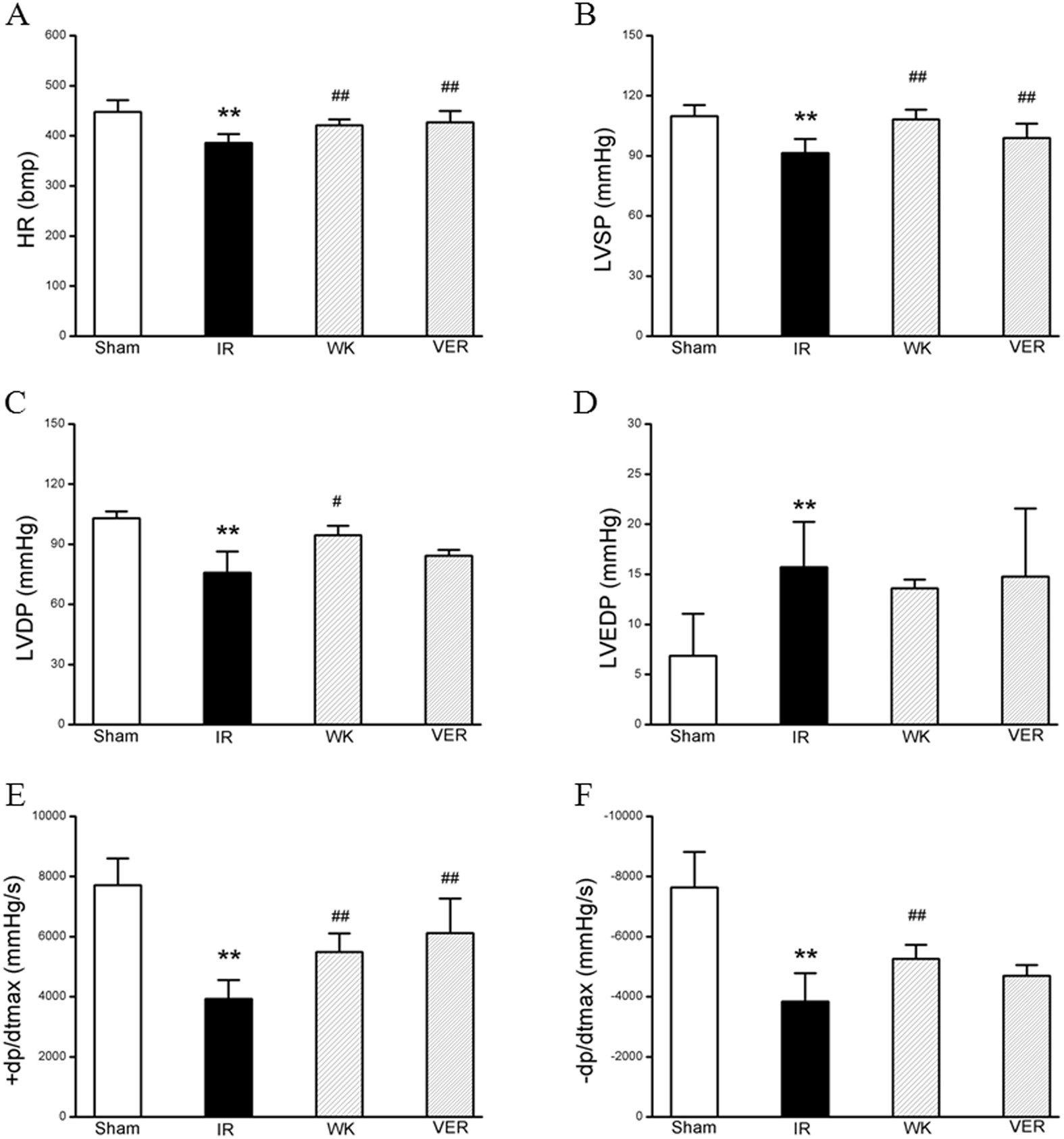

Effects of WXKL and verapamil on hemodynamics post I/R injury. Quantitative hemodynamic assessment was carried out on the left ventricle through right carotid artery to evaluate the role of WXKL or verapamil for I/R injury. (A) heart rate (HR), (B) left ventricular systolic pressure (LVSP), (C) left ventricular development pressure (LVDP), (D) left ventricular end diastolic pressure (LVEDP), (E) left ventricular maximum upstroke velocity (+dp/dt max), and (F) left ventricular maximum descent velocity (−dp/dt max). Data are expressed as means ± S.D.; **p < 0.01 compared with sham group; # p < 0.05, ## p < 0.01 compared with model group.
