Figure 1
From: Tuning Metamaterials by using Amorphous Magnetic Microwires

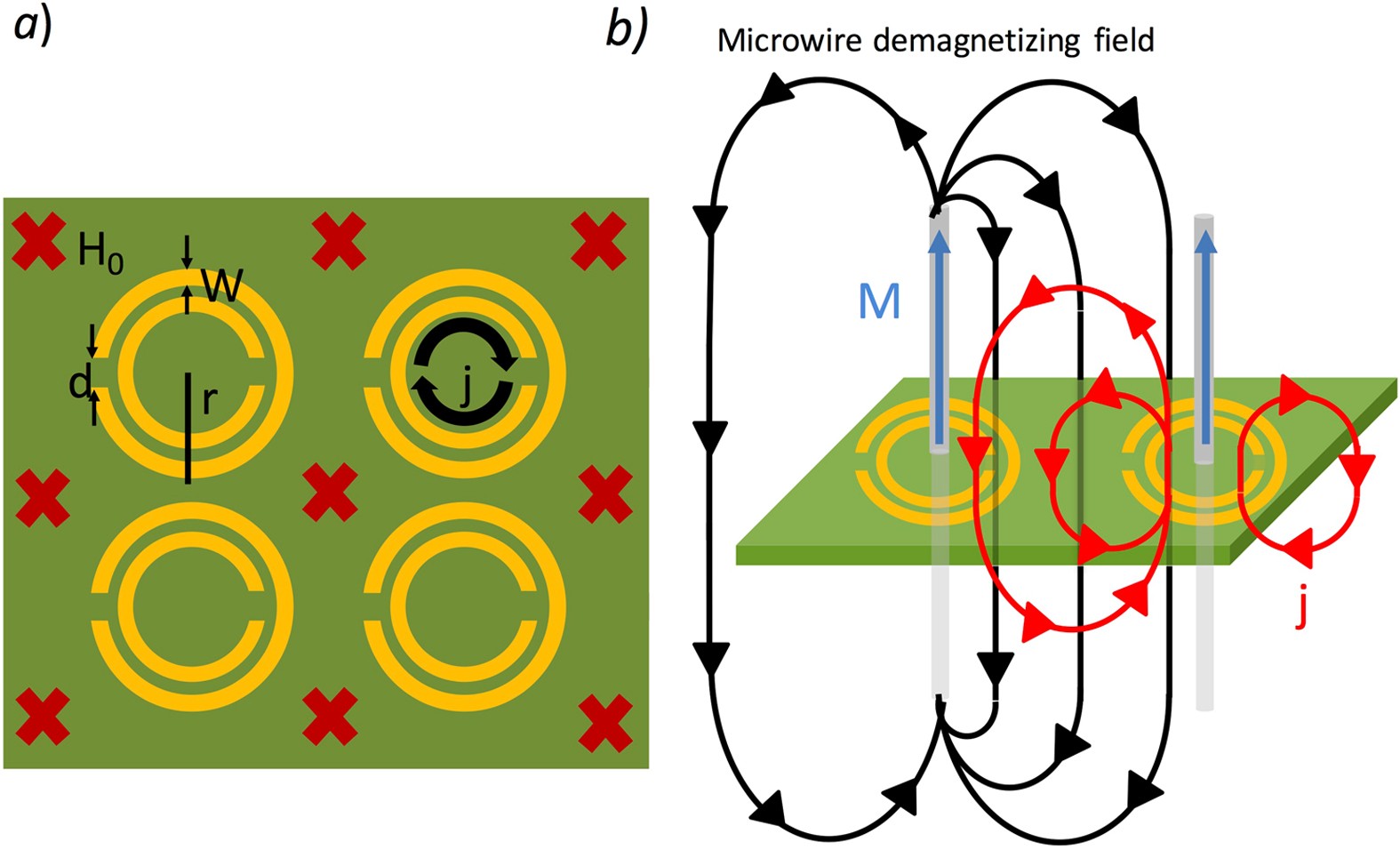

(a) Scheme of the studied and constructed array of SRR, where the external radius is about 3.6 mm, the width of the rings is 0.9 mm, and the gap is about 0.2 mm. The oscillating applied field, H 0 , and the induced density current, j, are also represented. (b) Magnetic lines generated by a microwire when is included at the center of a SRR and the magnetic line representation of the field j and the demagnetiziting field.
