Figure 2
From: Tuning Metamaterials by using Amorphous Magnetic Microwires

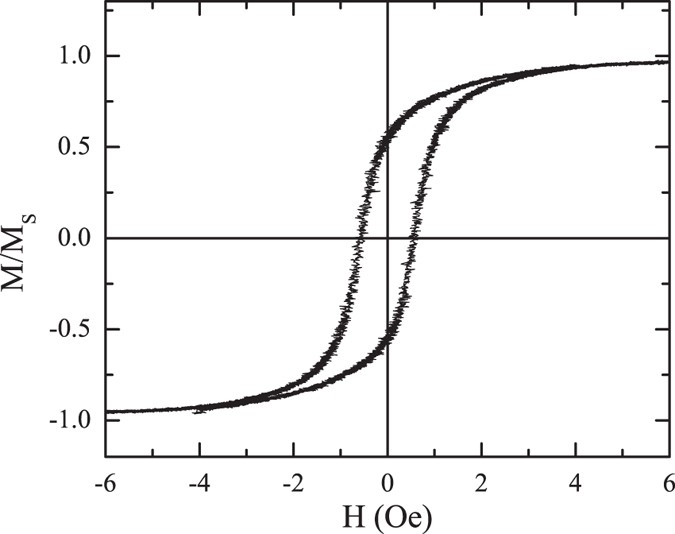

Hysteresis loop for one of the microwires used during the experiments obtained by induction method. The applied field was of 20 Oe of amplitude and 10 Hz of frequency.
