Figure 16

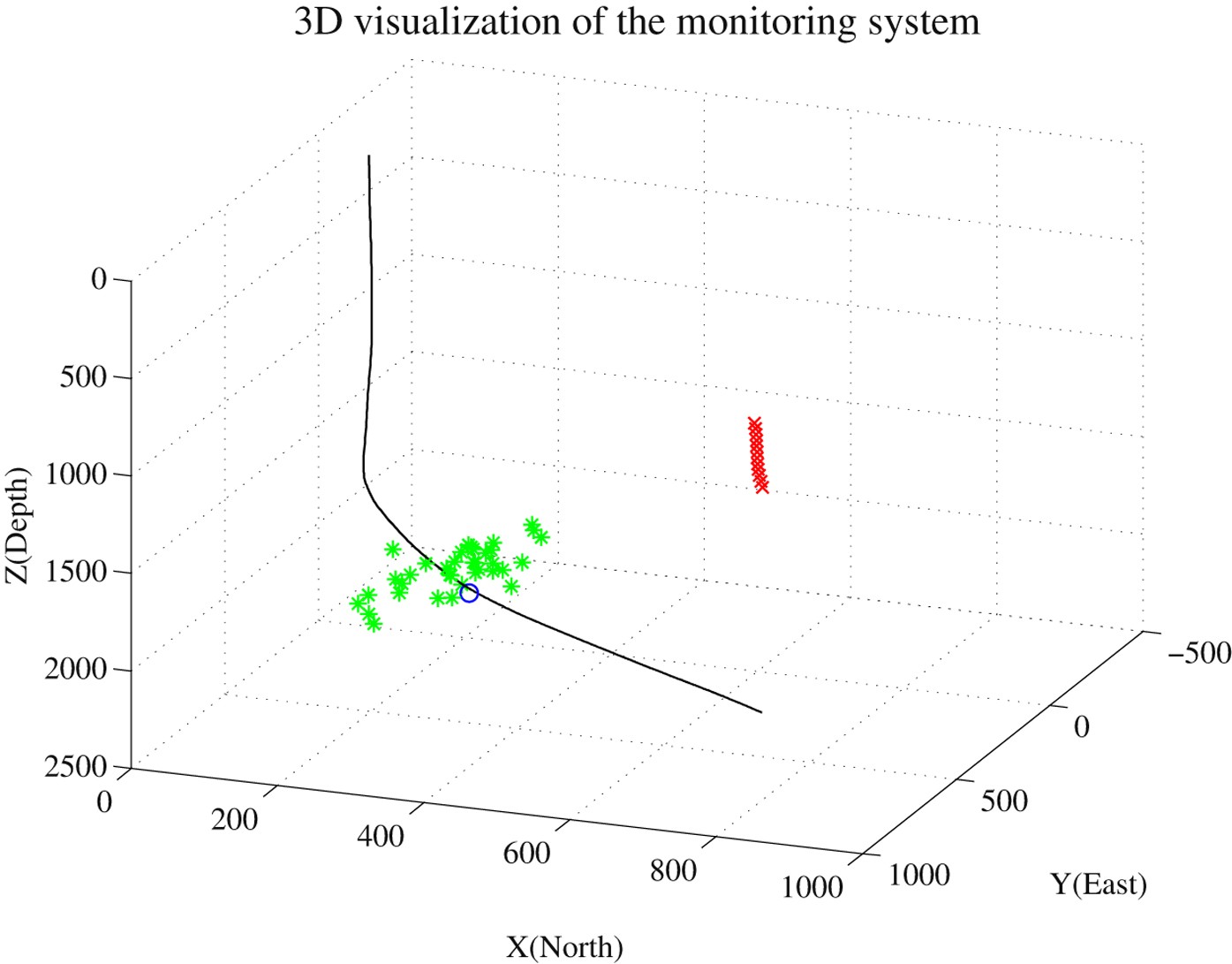

The results of source locating. The black curve line, blue circle and red crosses denote the trajectory of the fracturing well, the position of perforation and geophones, respectively. The green asterisks denote the inverted locations of the microseismic events.
