Figure 7

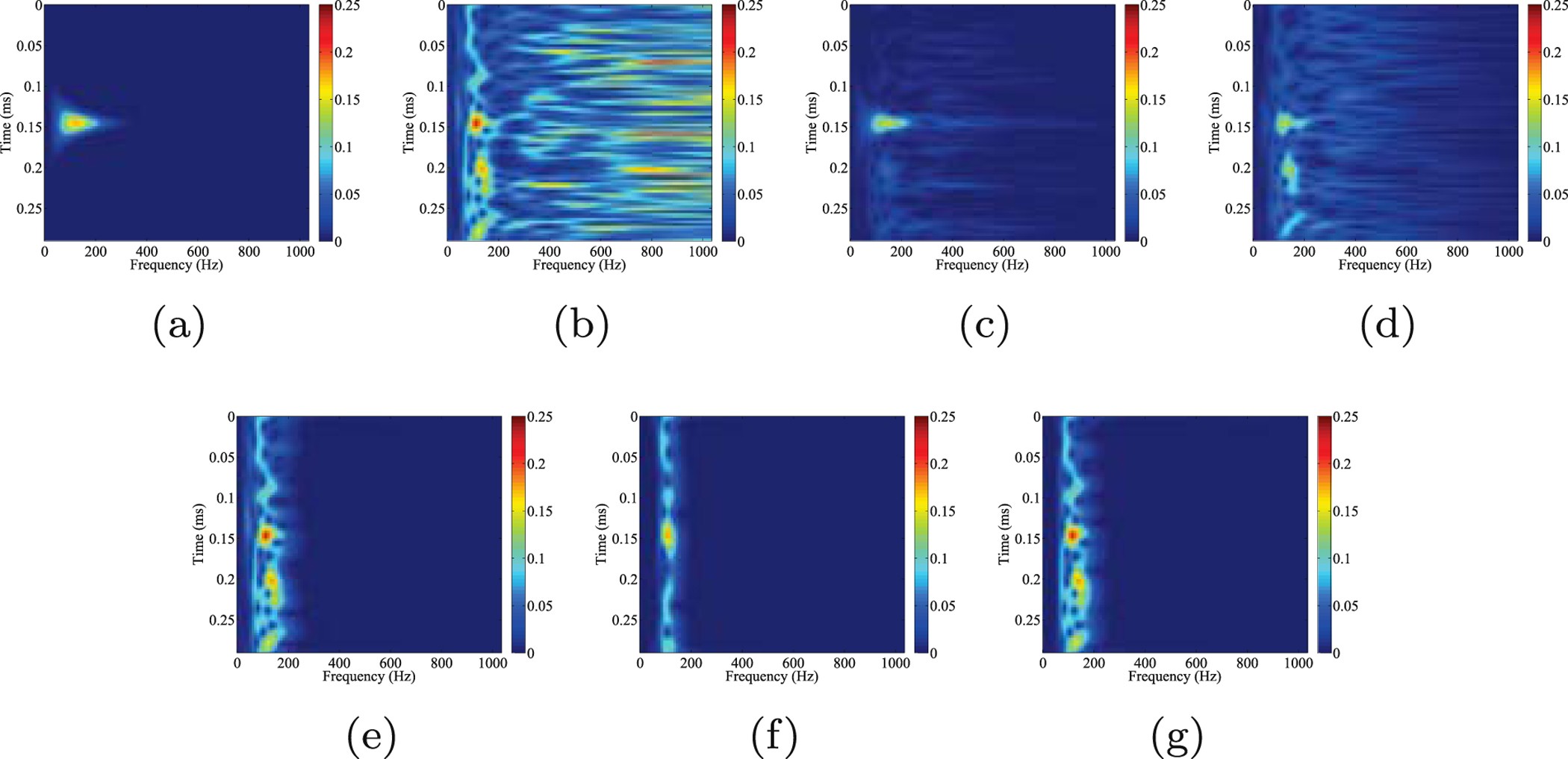

Comparison of time-frequency spectrums of (a) clean data, (b) noisy data, (c) orthogonalized morphological reconstruction, (d) conventional morphological reconstruction, (e) filtered data (10–20–180–190 Hz), (f) filtered data (70–80–120–130 Hz), (g) filtered data (60–70–170–180 Hz) of the second synthetic example.
