From: Miltefosine Resistant Field Isolate From Indian Kala-Azar Patient Shows Similar Phenotype in Experimental Infection

Figure 7

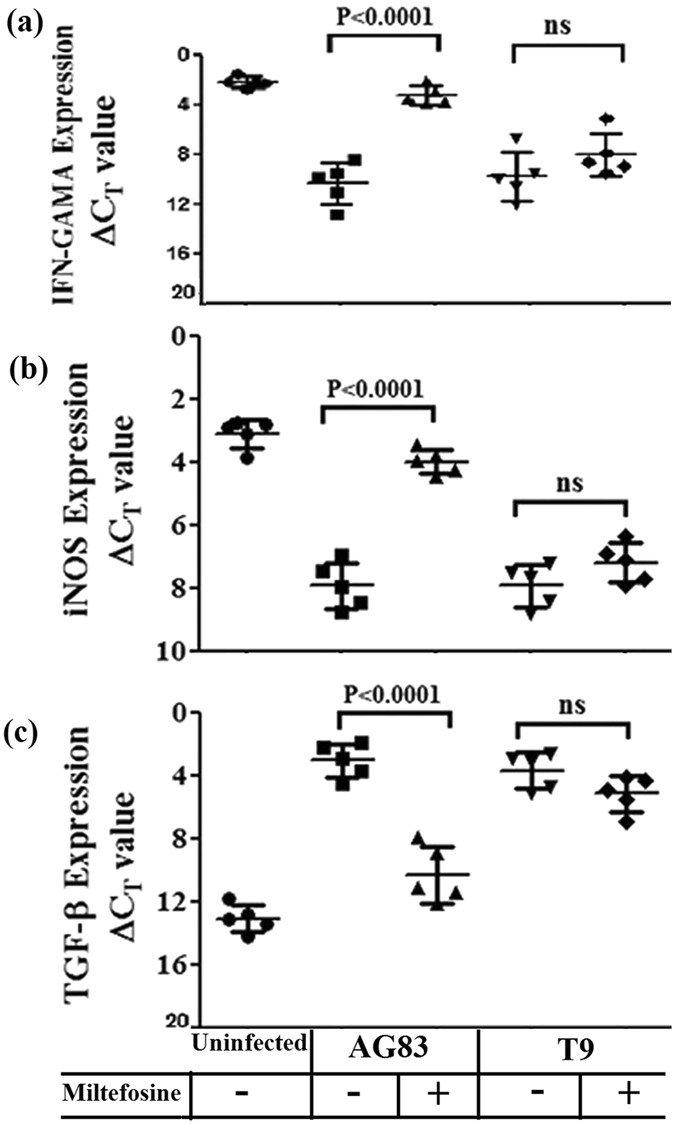

Real-time PCR analysis of mRNAs of Th1 and Th2 cytokines. (a) IFN-γ (b) iNOS (c) TGF-β transcripts were analyzed from uninfected, infected and MIL treated groups of hamsters. Data represents mean ± SD of 5animals per group; unpaired two-tailed Student’s t-test was performed and levels of significance are indicated by P values; ns. Non significant.
