Figure 1
From: Contamination-free graphene by chemical vapor deposition in quartz furnaces

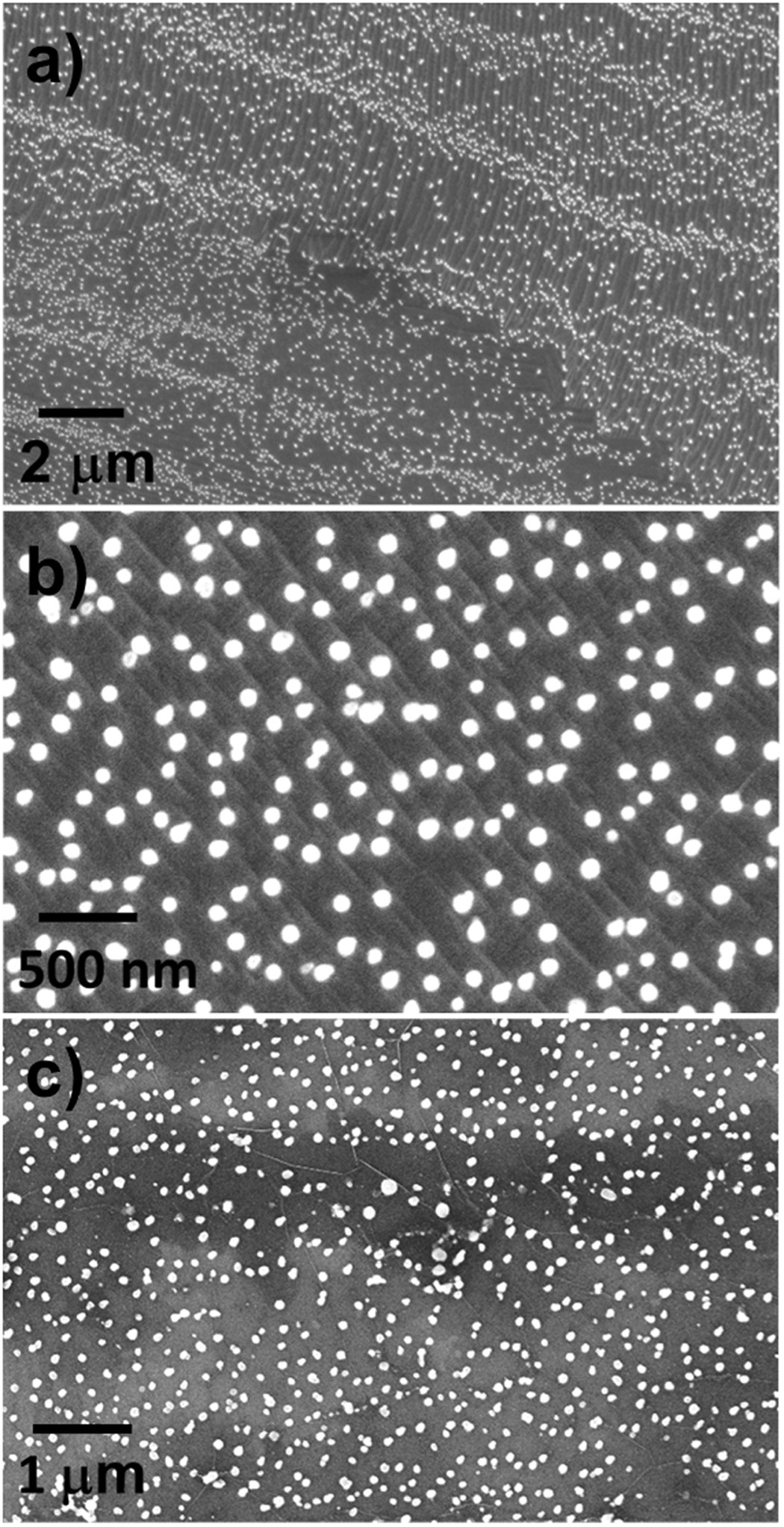

SEM images of a heavily contaminated graphene film grown by CVD with an aged quartz tube, on copper (a,b) and after transfer on Si/SiO2 300 nm (c). Cu surface reconstruction and graphene folds are clearly visible.
