Figure 2

From: The First Call Note Plays a Crucial Role in Frog Vocal Communication

Figure 2

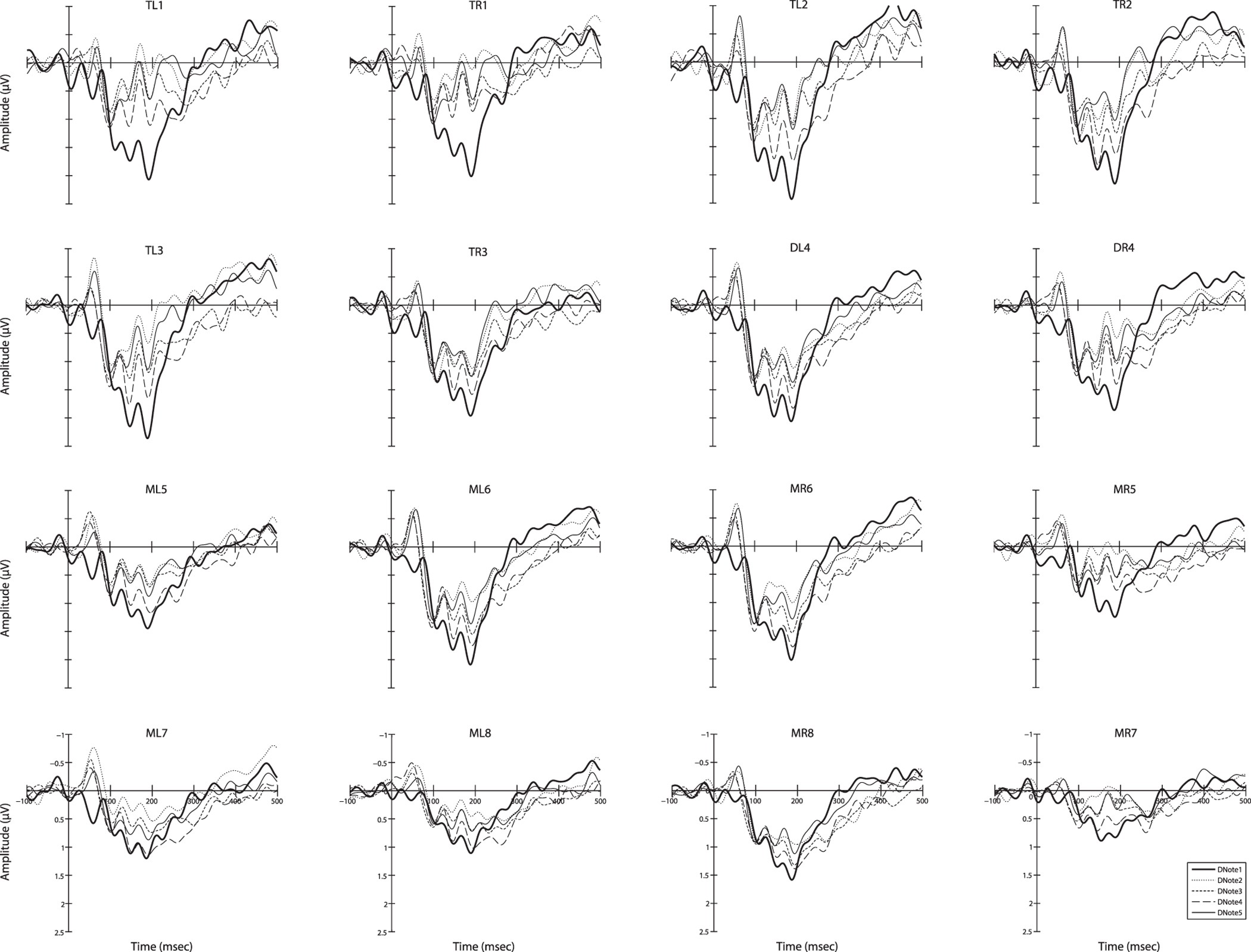

The amplitudes of the difference waves for the five call note deviant stimuli with respect to each brain area. Abbreviation: DNote1/2/3/4/5 denote the difference waves for the five notes respectively; TL1-3 and TR1-3, the six channels on the telencephalon; DL4 and DR4, the two channels on the diencephalon; ML5-8 and MR5-8, the eight channels on the mesencephalon.
