Figure 2
From: A broad range quorum sensing inhibitor working through sRNA inhibition

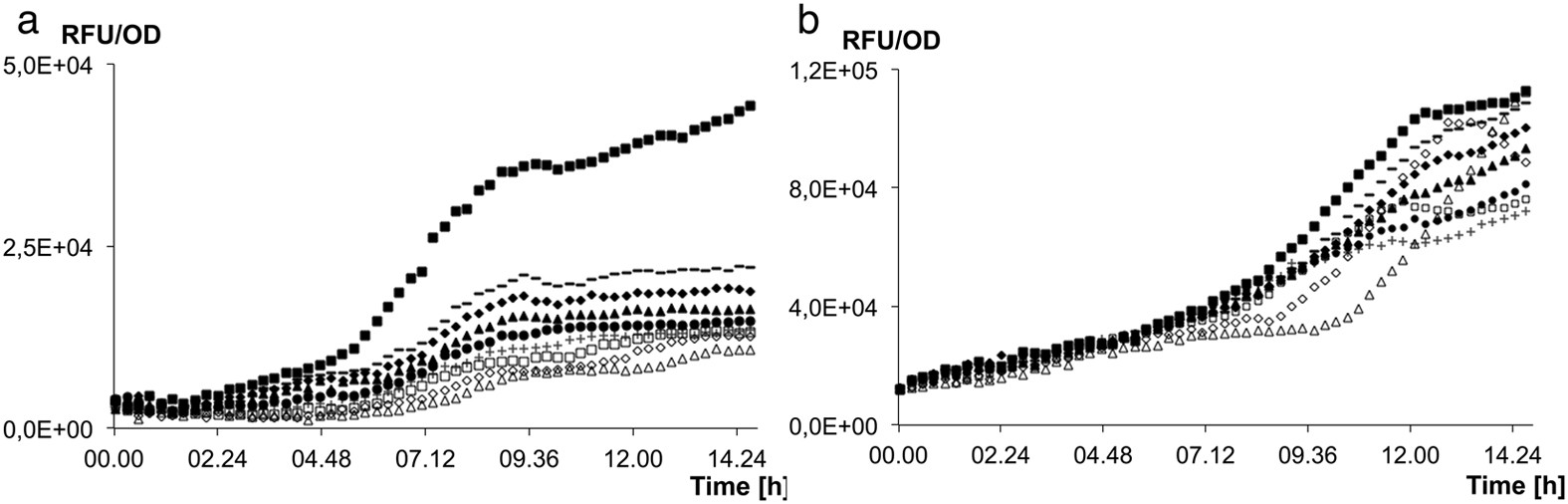

Regulation of rsmY and rsmZ expression in a retS mutant by ajoene. The GFP expression/cell density (RFU/OD) of a rsmY-gfp (a) and rsmZ-gfp (b) transcriptional fusion in retS background with following concentrations of ajoene: △125 μg/ml ◊62,5 μg/ml □31,25 μg/ml +15,6 μg/ml ●7,8 μg/ml ▲3,9 μg/ml ♦2 μg/ml −1 μg/ml ■ No addition of ajoene. The experiments were done in triplicate.
