Figure 6
From: Delineation of Tumor Habitats based on Dynamic Contrast Enhanced MRI

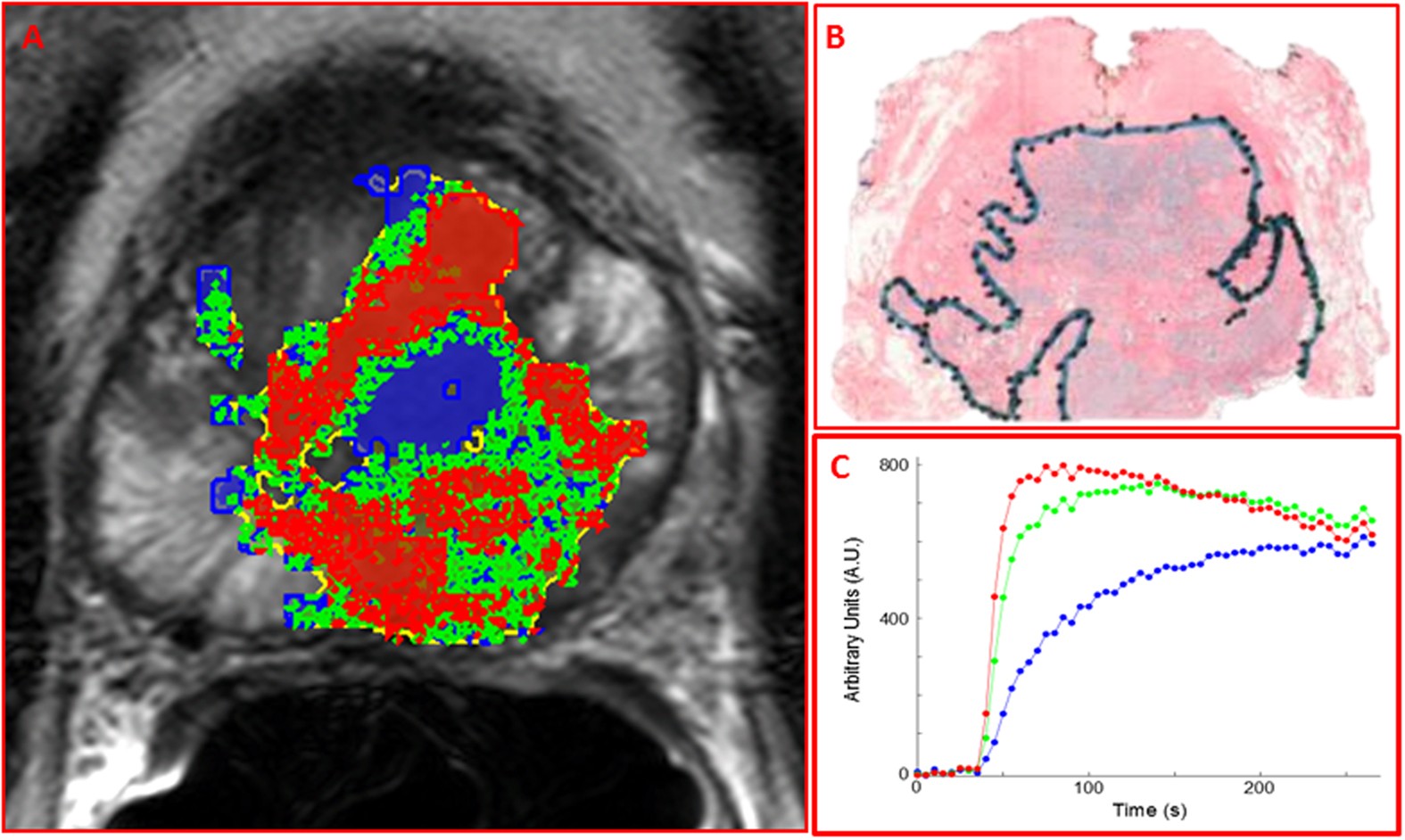

Mapping of tumor habitats in prostate cancer. (A) A T2-weighted axial MR image slice of the prostate of a patient with prostate cancer. Tumor habitats are presented as follows: ‘well-perfused’ – red; ‘hypoxic’ – green; and ‘necrotic’ – blue; (B) Histopathological slide at mid prostate level with outlined tumor area (Gleason Score 9); (C) Corresponding average signal-versus-time curve from each habitat.
