Figure 6
From: A hybrid resistive pulse-optical detection platform for microfluidic experiments

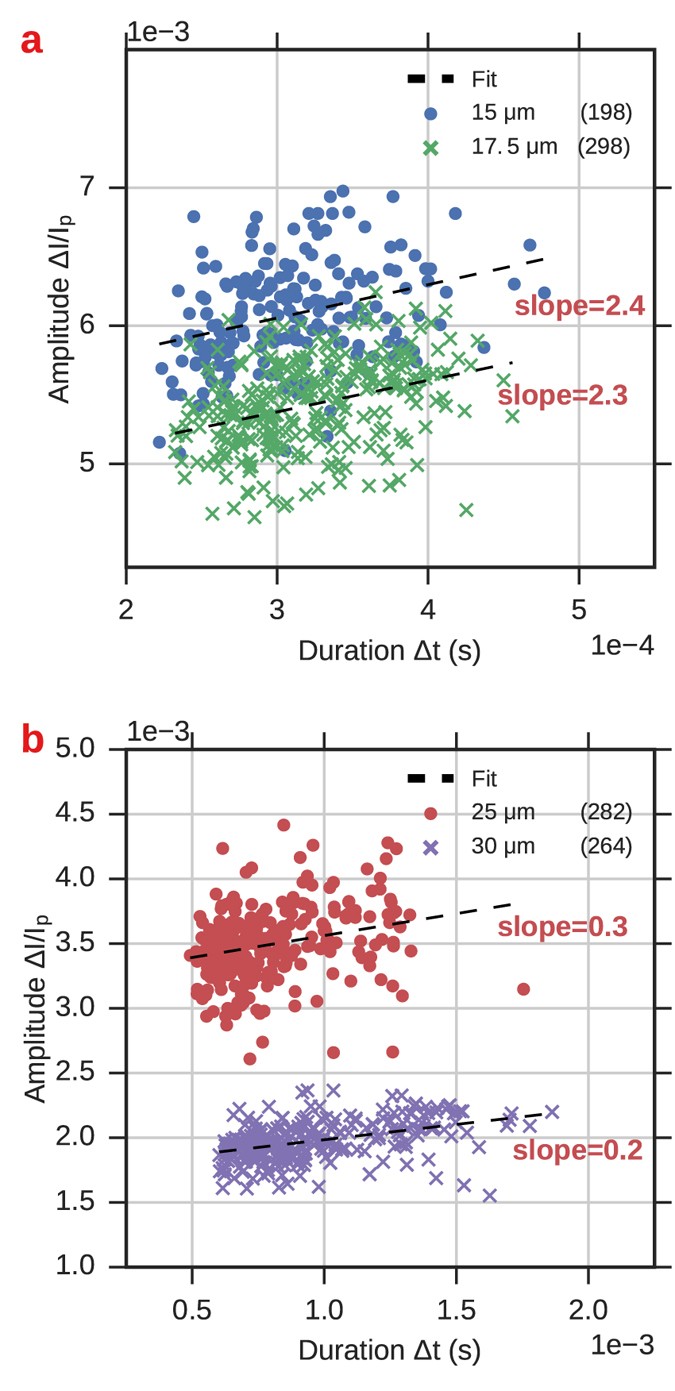

Scatter plot of RP event amplitude versus duration for the four straight channels considered in this paper. Event duration was calculated from the imaging data by subtracting the particle’s channel exit time from its entrance time. Linear fits to the data (dashed lines) show positive correlation between event duration and amplitude. The legend indicates the channel type and number of recorded events for each cluster.
