Figure 7
From: A hybrid resistive pulse-optical detection platform for microfluidic experiments

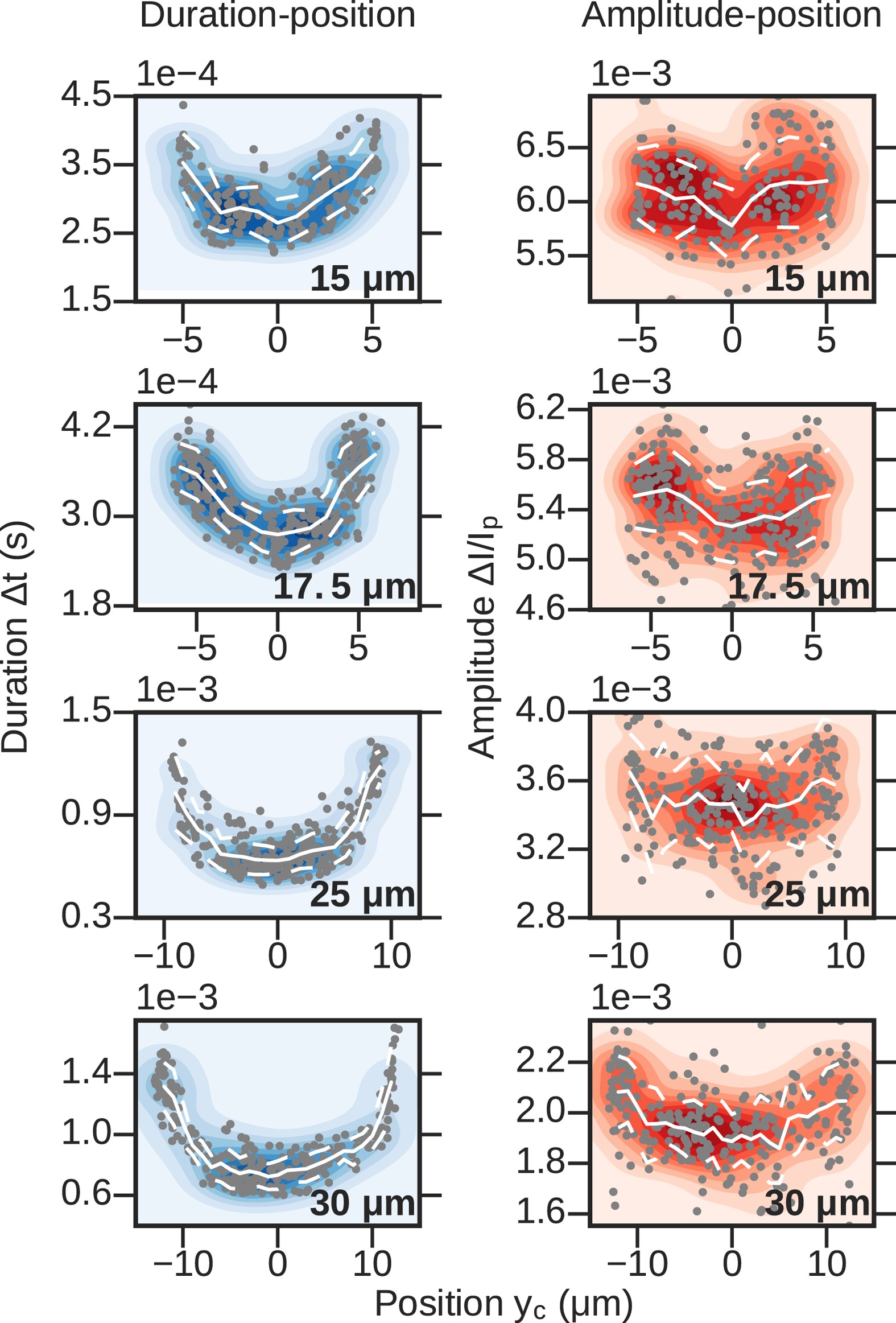

Scatter plots with averages and standard deviations (white lines) and point density (color background). Left: Translocation duration Δt versus off-axis position y c . The fluid flow velocity profile is expected to be described by Poiseuille flow, with a maximum at the center of the channel and minima at the channel surfaces. The event duration is inversely related to the fluid velocity, which is supported by the data. Right: RP amplitude ΔI/I p versus off-axis position y c . Off-axis events are expected to have larger RP amplitudes than on-axis particles, a trend seen in the data for all four channels.
