Figure 8
From: A hybrid resistive pulse-optical detection platform for microfluidic experiments

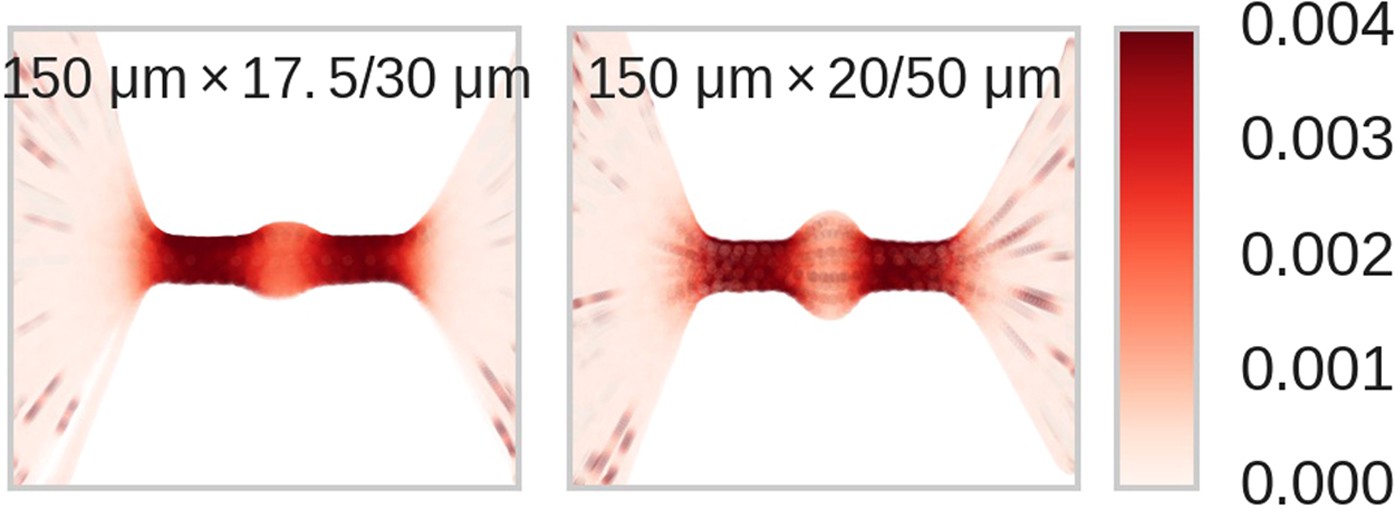

Resistance maps of the two cavitated channels studied shown in Fig. 1. As in Fig. 4, the dark red colors indicate regions of relatively high resistance compared to light red regions. Data points in the channels’ central cavities are lighter than in the narrow regions, indicating smaller ΔI/I p blockages.
