From: A global Staphylococcus aureus proteome resource applied to the in vivo characterization of host-pathogen interactions

Figure 1

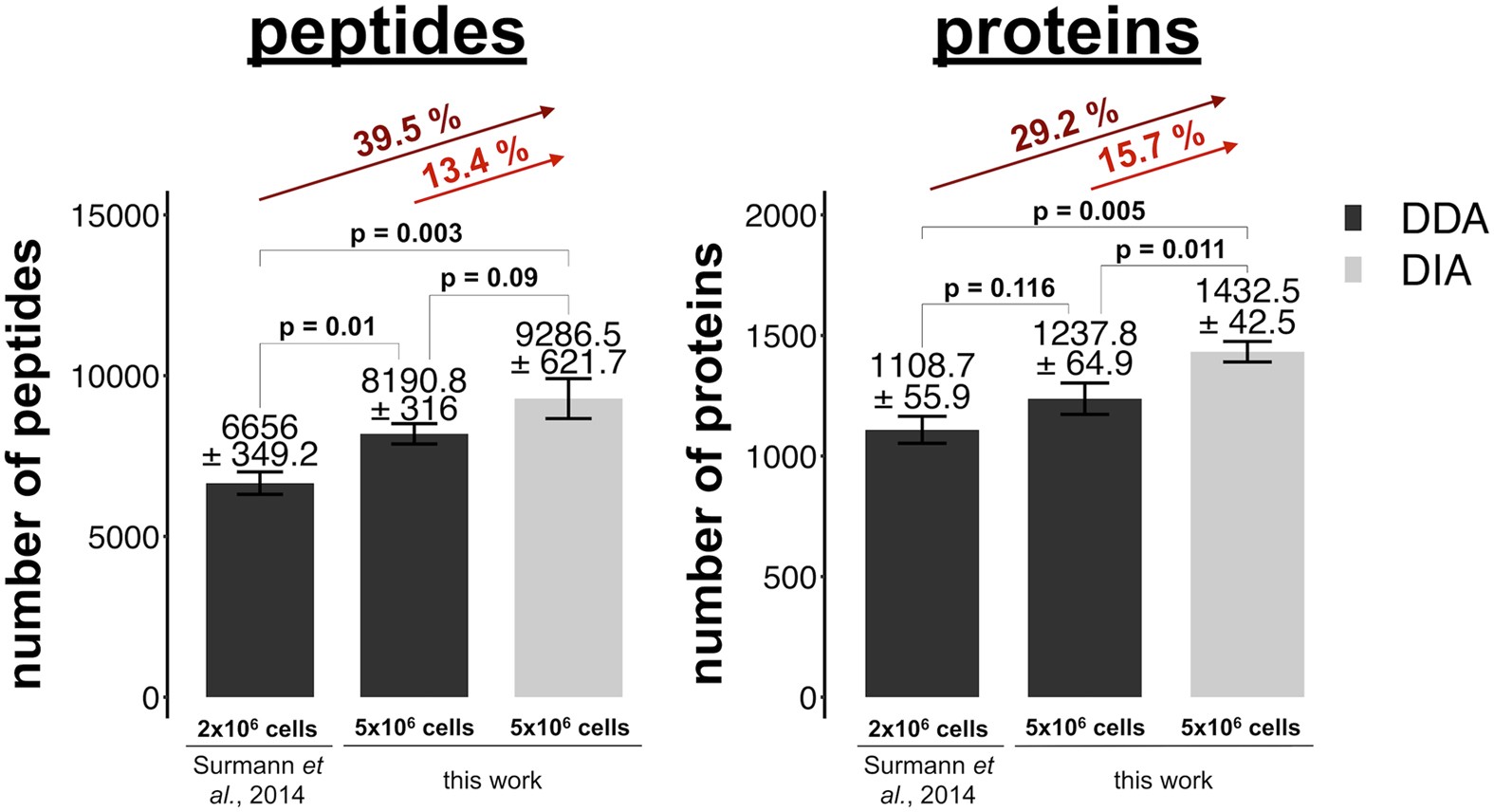

Characterization of the generated S. aureus ion library. Number of identifications (DDA-MS and DIA-MS). The DDA measurements of Surmann et al.10 generated from 2 × 106  S. aureus cells are compared with the DDA-MS and DIA-MS measurements from 5 × 106  S. aureus cells. The bar charts show the mean and standard deviation of identified peptides and proteins per single run at an FDR of 0.001. The identification rates were compared with two-sample two-sided student t-test using the Bonferroni correction for multiple testing.
