Figure 1
From: A DNA aptamer efficiently inhibits the infectivity of Bovine herpesvirus 1 by blocking viral entry

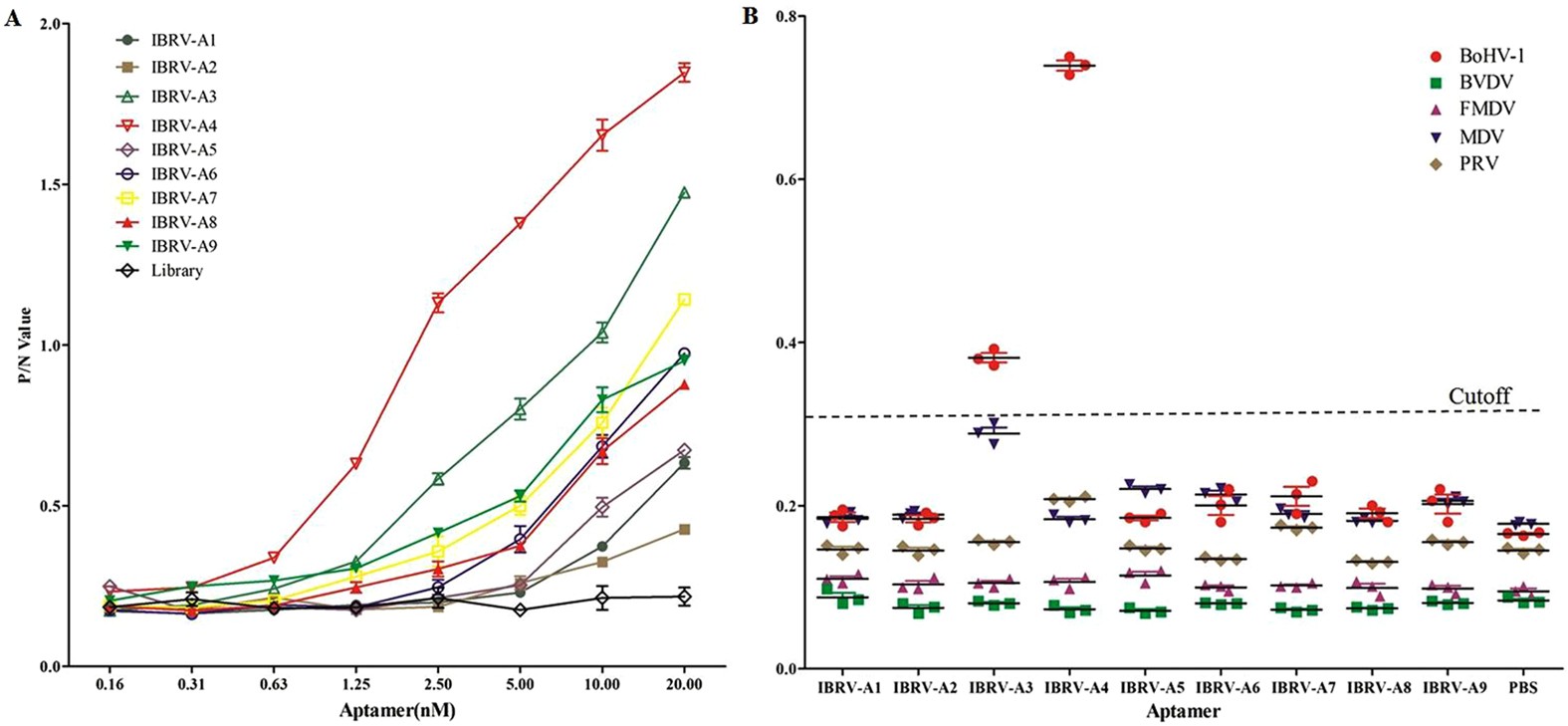

Binding affinity and specificity of selected aptamers against BoHV-1. ELONA was used to determine binding affinities (A) and specificities (B) of selected aptamers against BoHV-1. In each graph, the Y-axis represents the measurement of bound aptamer at OD450. Different concentrations of aptamer were used for determining binding affinity as detailed on the X-axis (A) and a consistent concentration of aptamer was used for determining binding specificity as detailed in the X-axis (B). A cutoff OD450 of 0.323 was determined using PBS control.
