Figure 3
From: Anisotropic resonance modes emerging in an antiferromagnetic superconducting state

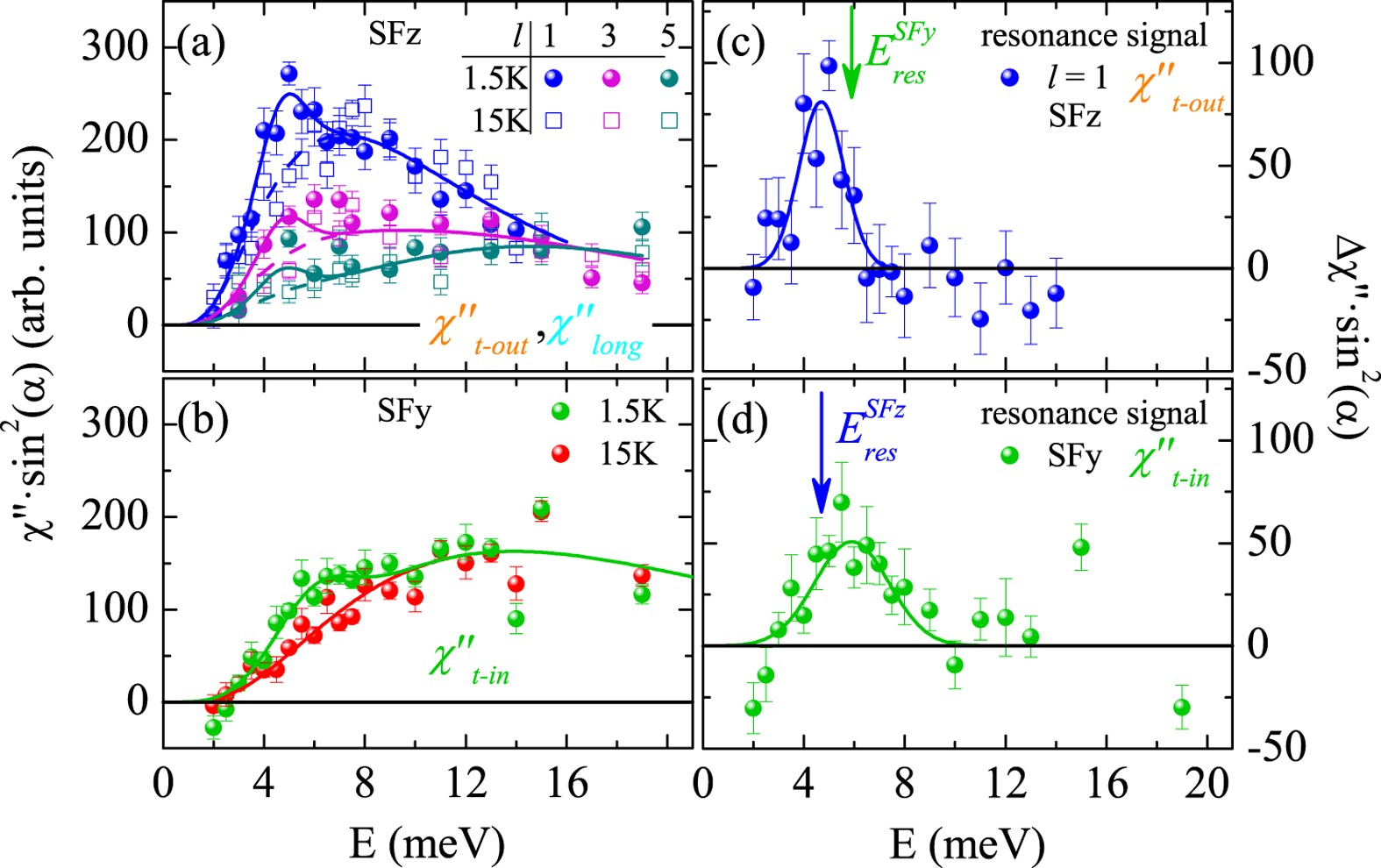

Emergence of two anisotropic spin resonance modes below T C . (a) SFz scattering at different l values with the analysis of Fig. 1b Comparison of SFy intensities obtained above and below T C ; since this channel only contains \({\chi^{\prime\prime}}_{t-in}\), the results obtained at l = 1, 3 and 5 were added and lines correspond to the analysis presented in Fig. 1. The intensity enhancements in the SFz (c) and SFy (d) channels clearly peak at different energies indicating the different SRMs at 4.7 meV (\({\chi^{\prime\prime}}_{t-out}\)) and 5.9 meV (\({\chi^{\prime\prime}}_{t-in}\)).
