Figure 3

From: Nonlocal Effects and Slip Heat Flow in Nanolayers

Figure 3

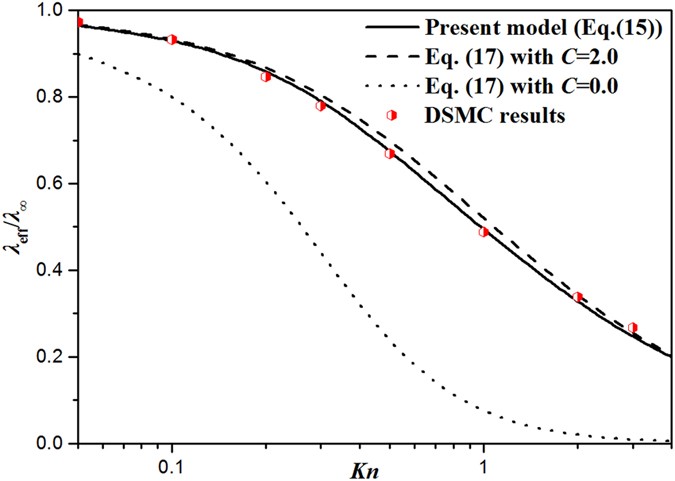

Dimensionless in-plane thermal conductivity of argon gas layers obatined by different models, i.e., the present model Eq. (15) (solid line), the previous model Eq. (17) with C = 2 (dash line), the previous model Eq. (17) with C = 0 (dot line), and DSMC results (scatters) with various Kn at 300 K.
