From: A reverse micelle strategy for fabricating magnetic lipase-immobilized nanoparticles with robust enzymatic activity

Figure 2

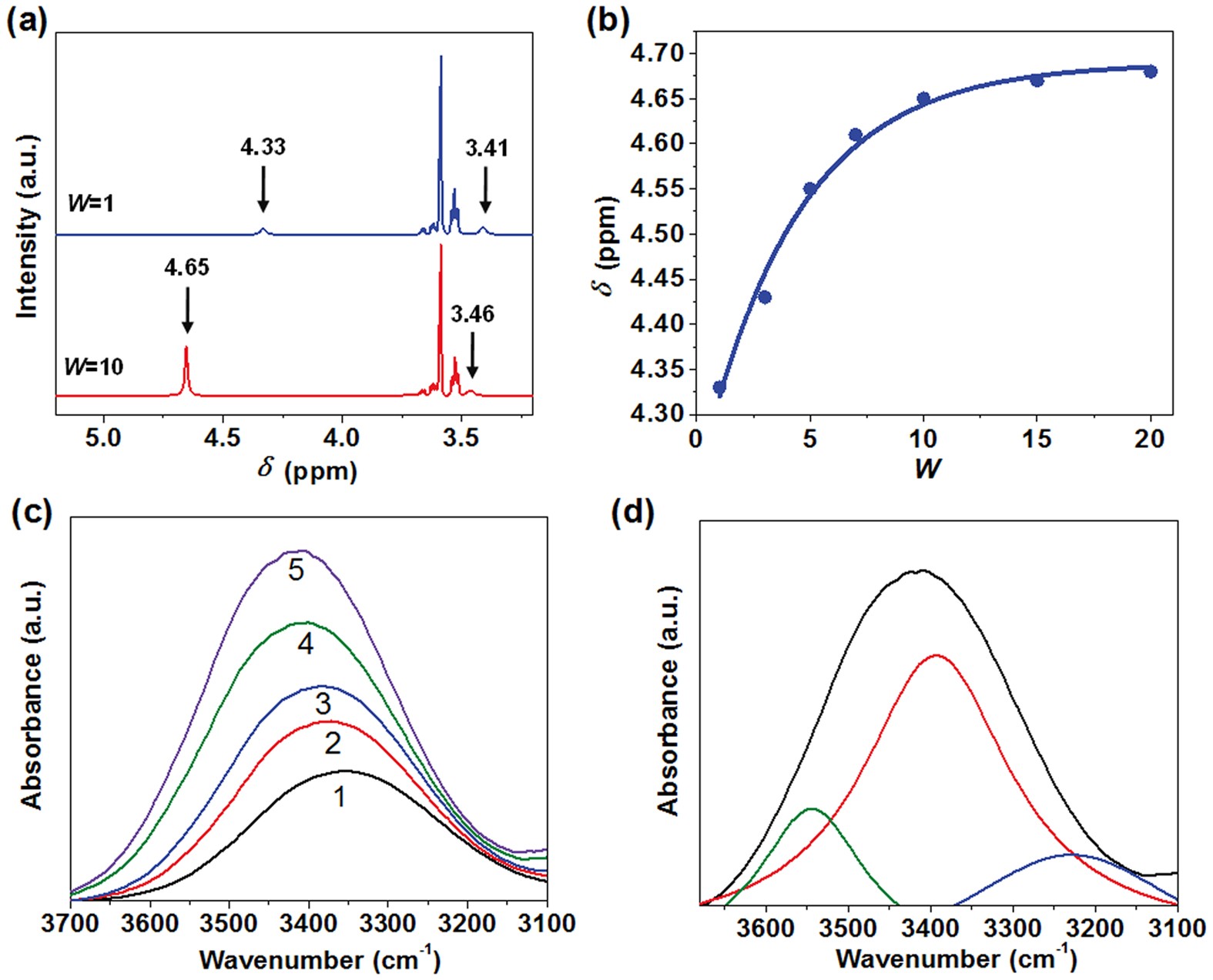

(a) 1H NMR spectra of TX-100 reverse micelles at W = 1 and W = 10. (b) Chemical shift of –OH protons with different W values. (c) FT-IR absorption intensify of –OH stretching vibration with different W values, from samples 1 to 5: W = 0.5, 1.0, 2.0, 5.0, and 20. (d) Curve-fitted for FT-IR peak in water hydroxyl in reverse micelles at W = 20.
