From: Minimally Invasive Micro-Indentation: mapping tissue mechanics at the tip of an 18G needle

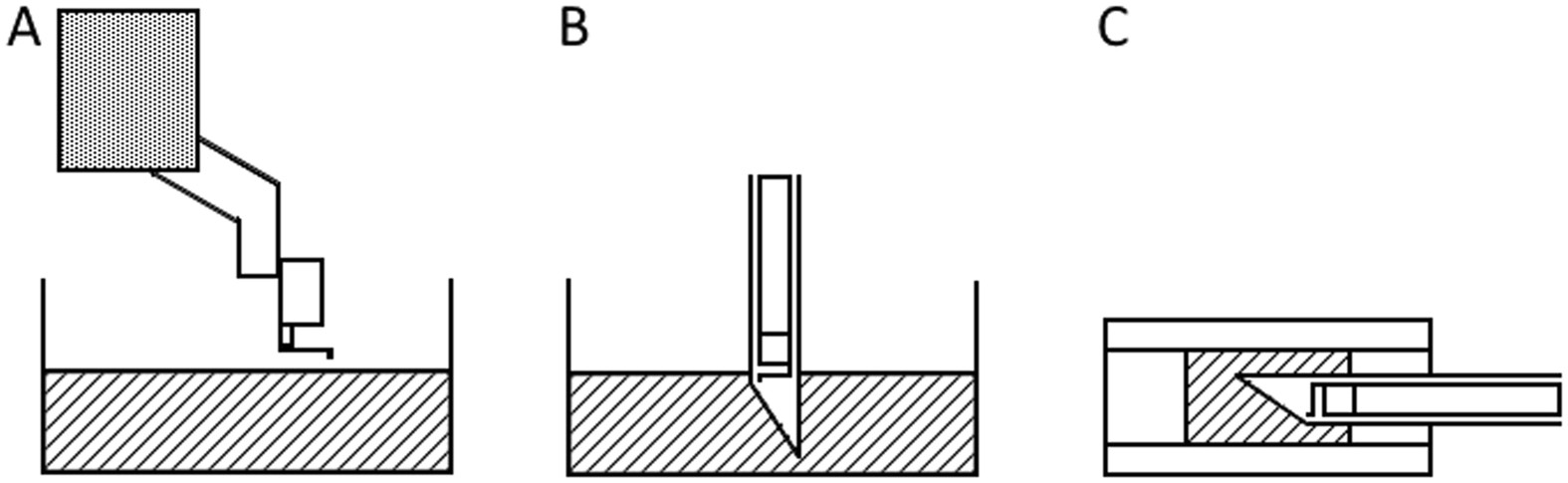

Schematic overview of the measurements performed to validate the MIMI indenter. The areas shaded with diagonal lines represent the PDMS sample. (A) First experiment: indentation of the top surface of a PDMS sample performed with a validated table top indenter as presented in ref.31. (B) Second experiment: indentation inside a PDMS sample performed with our MIMI indenter. (C) Third experiment: indentation inside a PDMS sample inside the NP of an IVD performed with our MIMI indenter. Not-to-scale.
