From: Noninvasive oscillometric cardiac output determination in the intensive care unit – comparison with invasive transpulmonary thermodilution

Figure 1

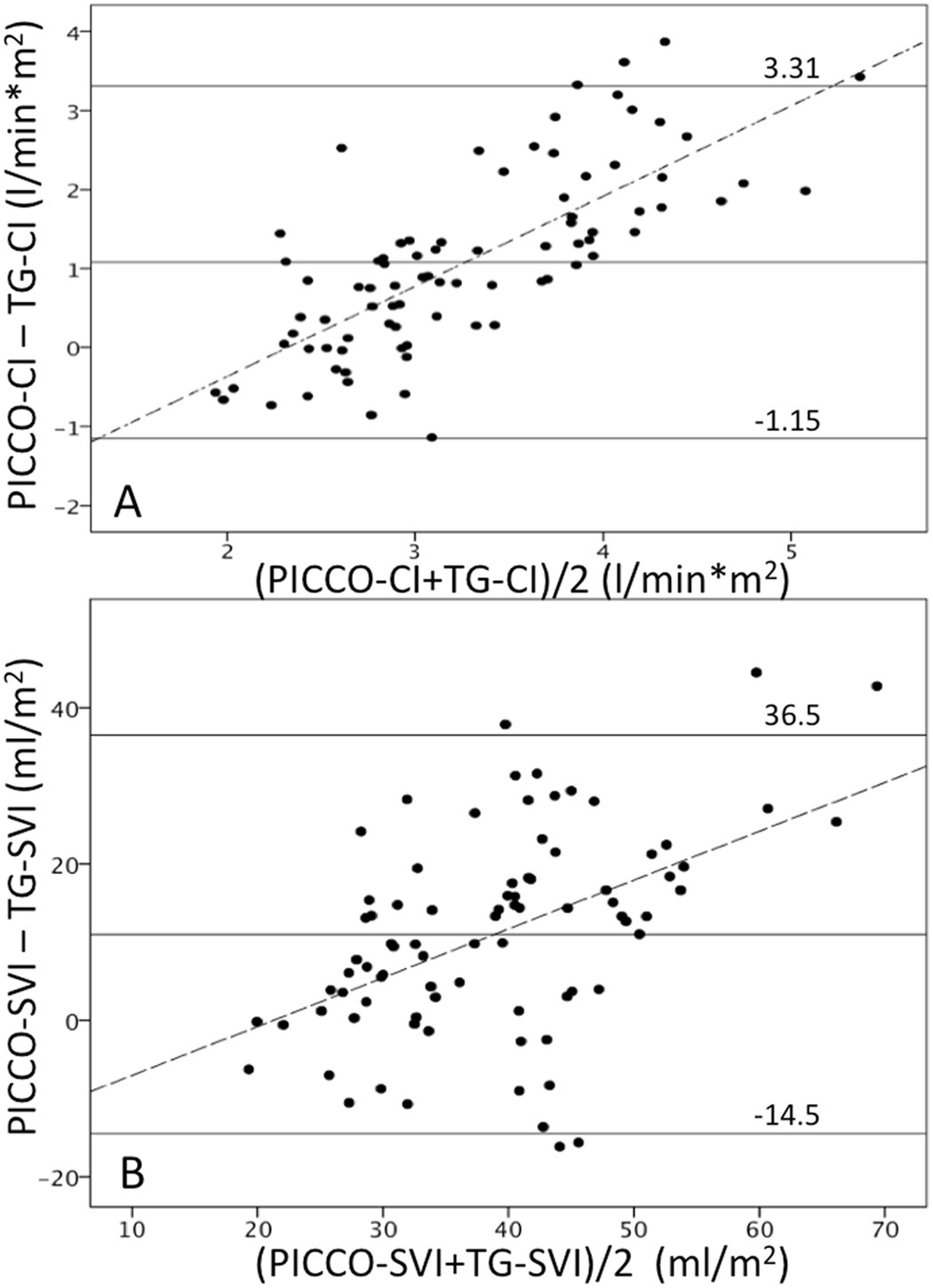

(A) Agreement between invasive PICCO measured cardiac index (PICCO-CI) and noninvasive TEL-O-GRAPH derived cardiac index (TG-CI): bias 1.08 l/min/m2, limits of agreement −1.15 to 3.31 l/min/m2 (percentage error 68.3%), dashed line represents the linear correlation between absolute CI level and PICCO- and TG-CI differences (Pearson’s r = 0.75); (B) Agreement between invasive PICCO measured stroke volume index (PICCO-SVI) and noninvasive TEL-O-GRAPH derived stroke volume index (TG-SVI):bias 11 ml/m2, limits of agreement −14.5 to 36.5 ml/m2 (percentage error 65.7%), dashed line represents the linear correlation between absolute SVI level and PICCO- and TG-SVI differences (Pearson’s r = 0.49).
