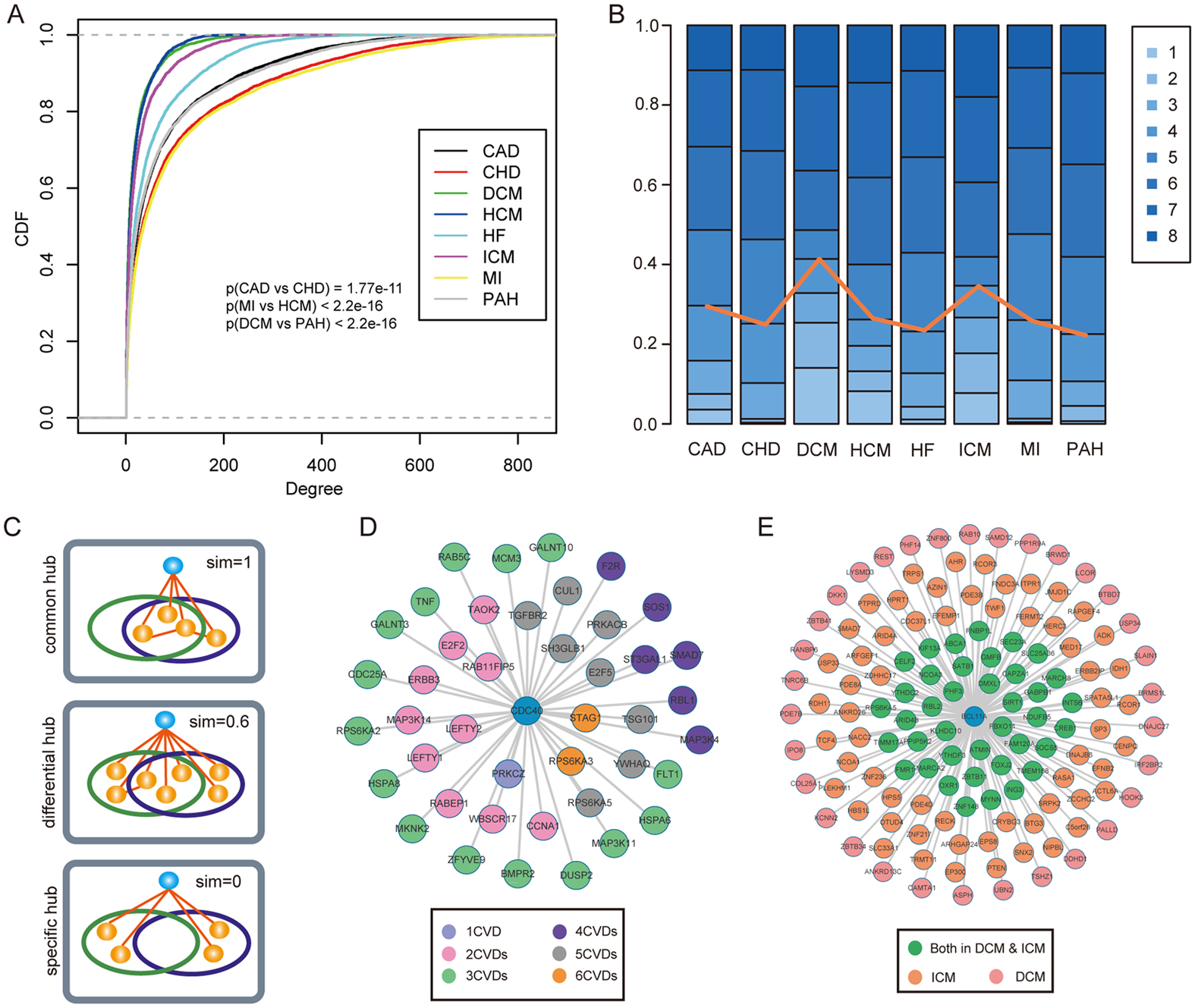

Differential analysis of networks reveals multi-type hubs in each disease network. (A) Cumulative distribution functions of the ceRNA degree in each disease network. (B) Hub ceRNA distributions across eight CVD ceRNA networks. (C) Hub ceRNAs were grouped into three categories, common hubs, differential hubs and specific hubs, showing in the mimic diagram. (D) An example of common hub CDC40. Nodes with different colors represented the different numbers of CVDs. (F) An example of differential hub BCL11A.
