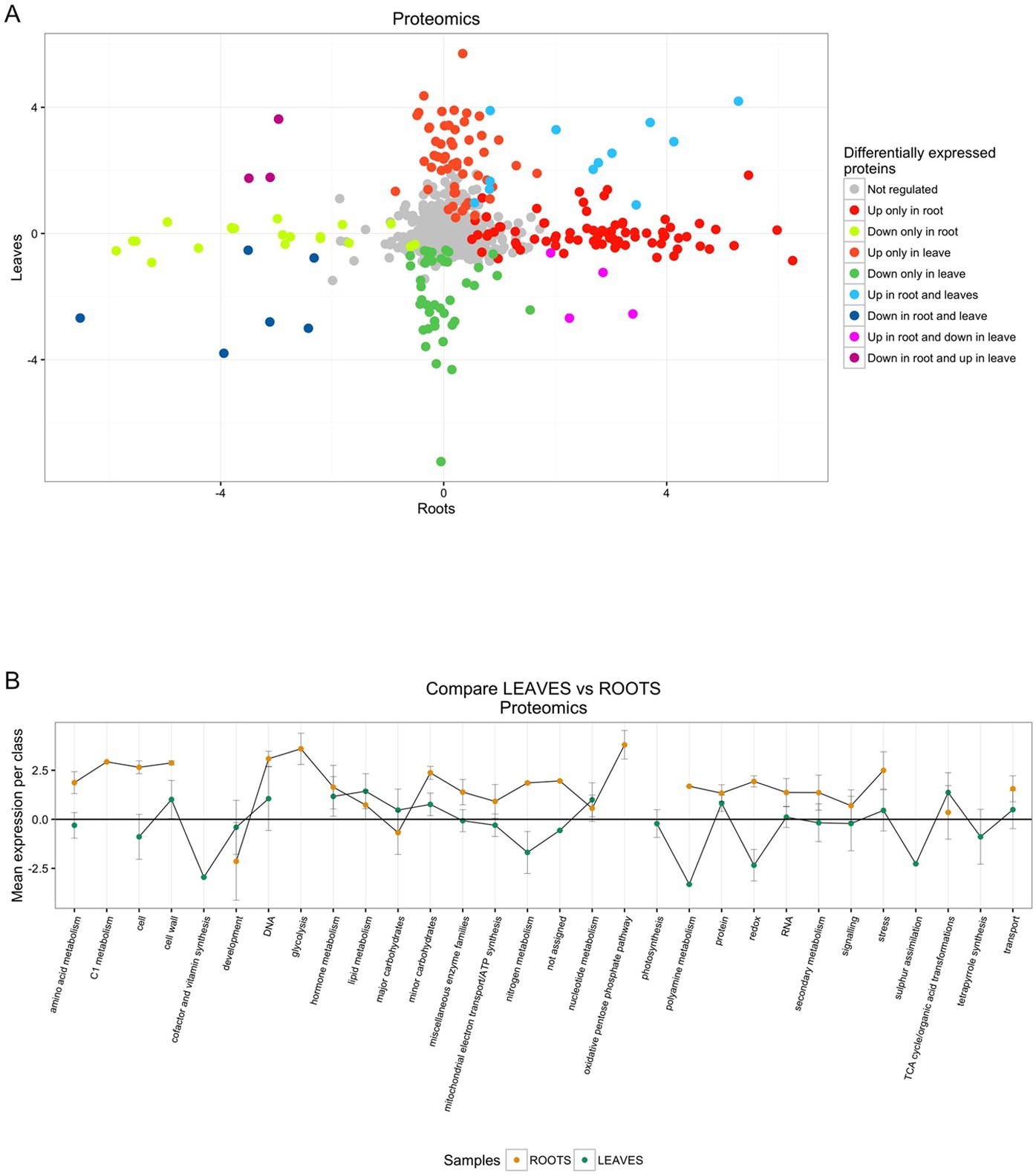

Figure 3

Proteomics data. (A) Overlap between DEPs presents in roots and leaves. (B) Overlap between MapMan categories identified by proteomics comparison between leaves and roots. In order to draw the plot, protein expression levels in all MapMan categories have been averaged.
