From: Central Nervous System Responses of the Oriental migratory, Locusta migratoria manilensis, to Fungal Infection

Figure 6

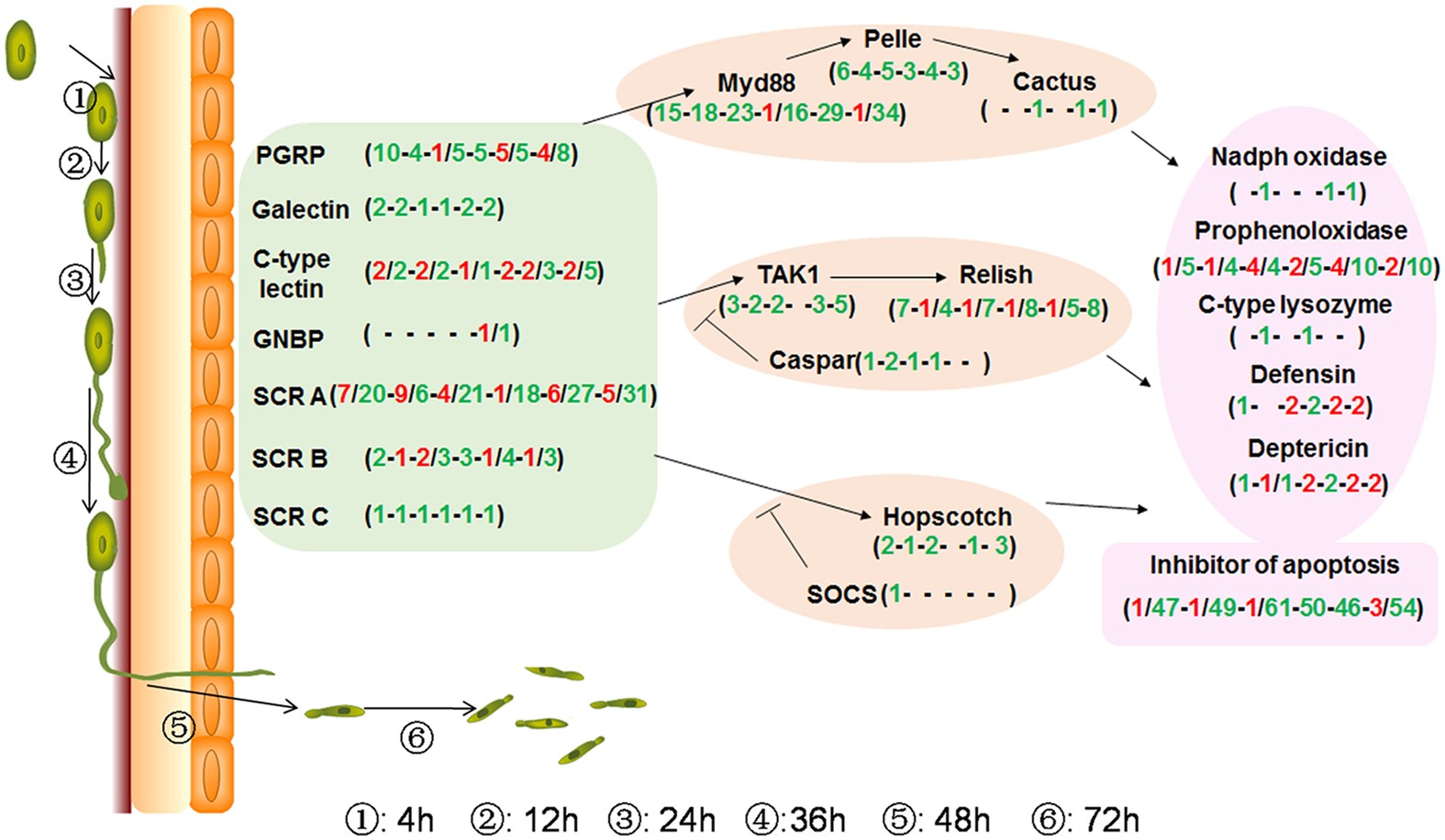

Summary of the immune related DEGs identified in the locust CNS after M. acridum infection. Red and green numbers in the brackets represent the number of significantly up-regulated and downregulated genes, respectively, corresponding to the sub-category. The infection time courses, inculding 4 h, 12 h, 24 h, 36 h, 48 h and 72 h post infection, were separated by short line in each bracket.
