Figure 2
From: Two-color pump-probe interferometry of ultra-fast light-matter interaction

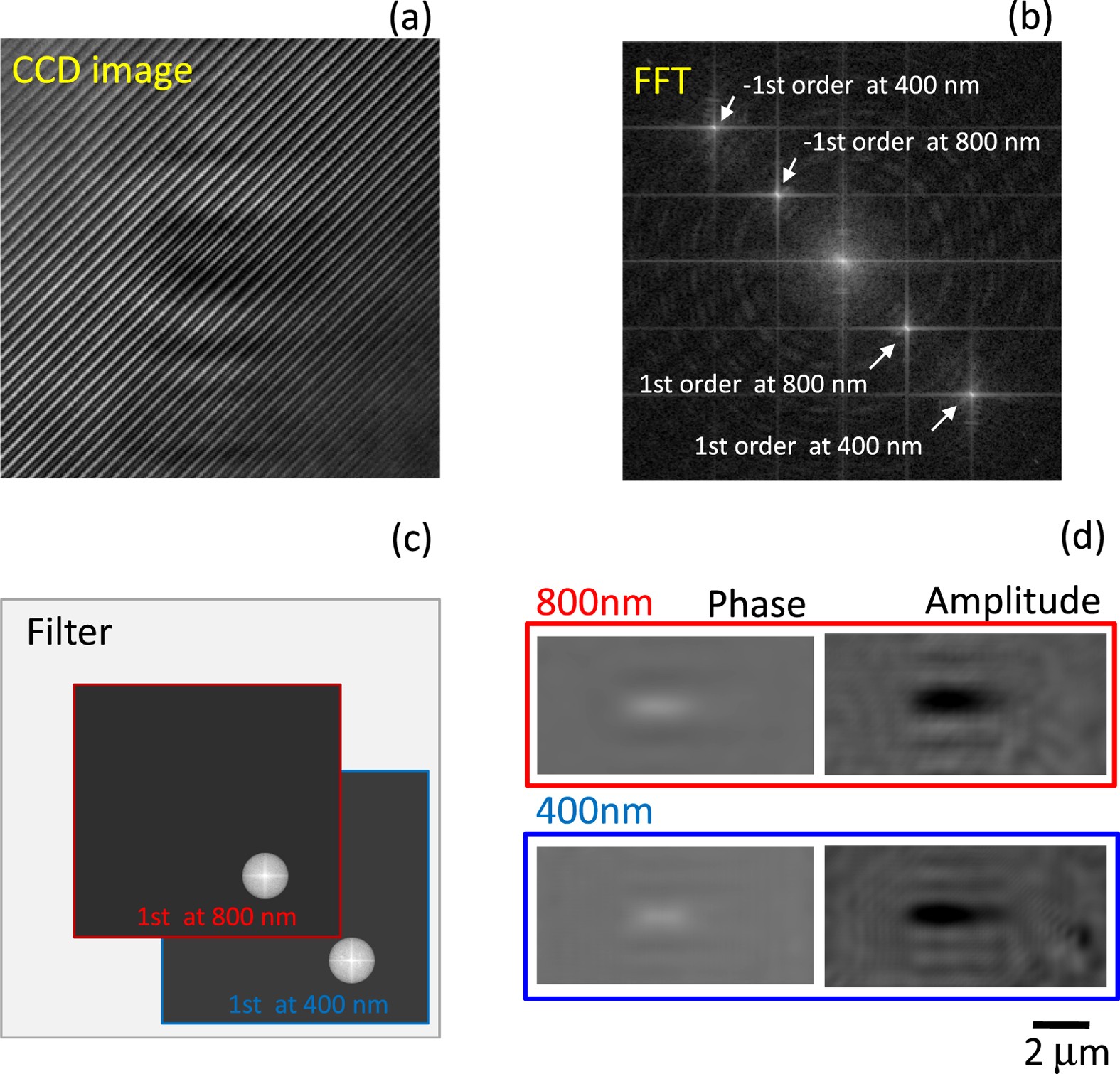

Implementation of the method. A CCD image (a) and its Fourier transform (b) with selection of the filter apertures for back transform (c) with the resulting phase and amplitude images (d). The filters (in (c)) are set to the optical resolution of setup at 0.89 μm.
