Figure 4
From: Revealing the mystery of metabolic adaptations using a genome scale model of Leishmania infantum

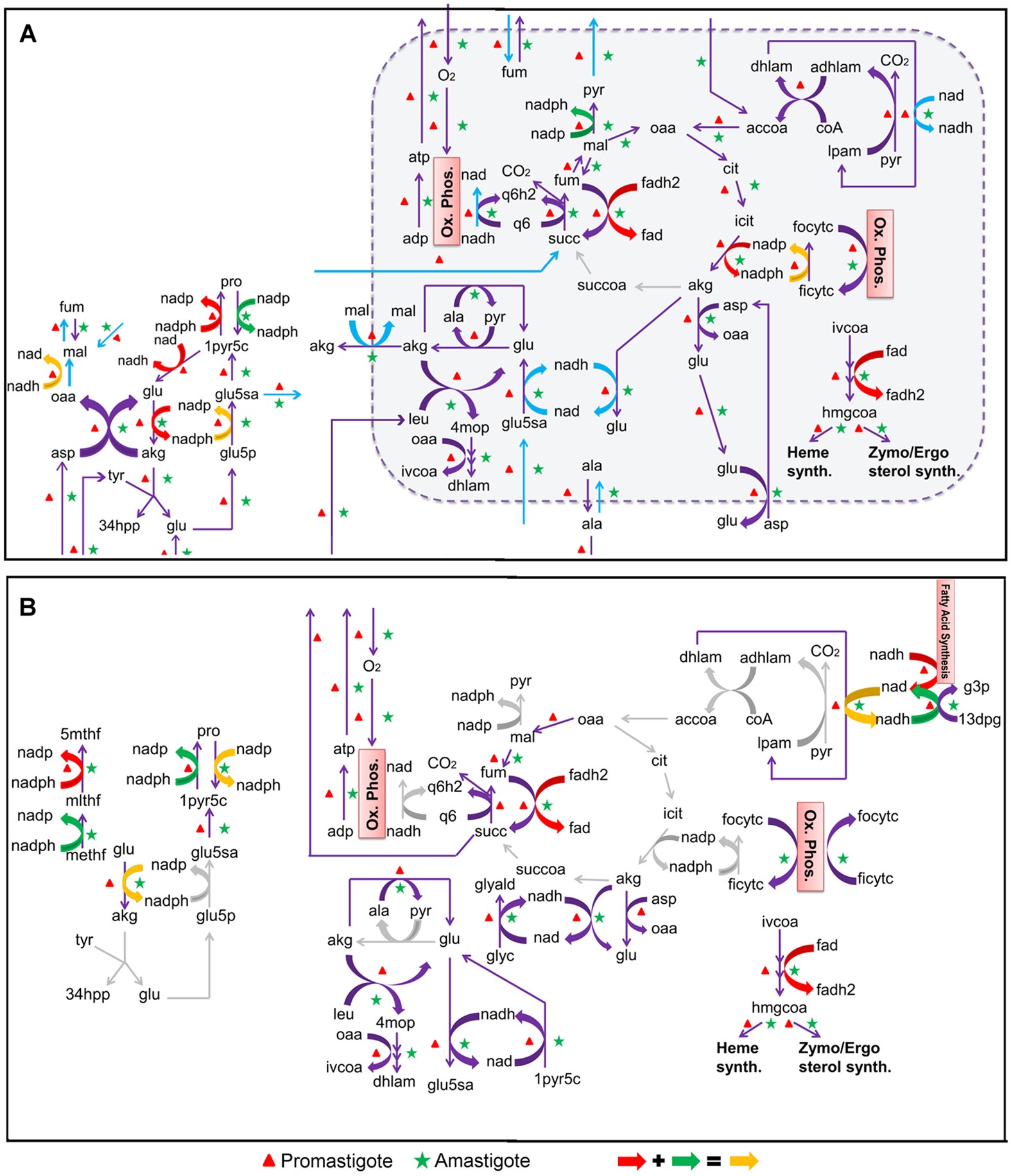

Comparison of flux profiles. (A) Normal (with mitochondrion). Blue colored box indicates the mitochondrion. (B) Perturbed (without mitochondrion) – the reactions take place in cytoplasm (represented as a bounded white space). While arrows indicate conversions from one metabolite to another, the colors indicate the mass balance of redox equivalents between a set of reactions. Grey colored arrows indicate complete blockage of reactions that were present in the actual normal scenario. The cases where redox balance is maintained within more than one reaction, are indicated by combination of colored arrows, as shown in the bottom of the figure.
